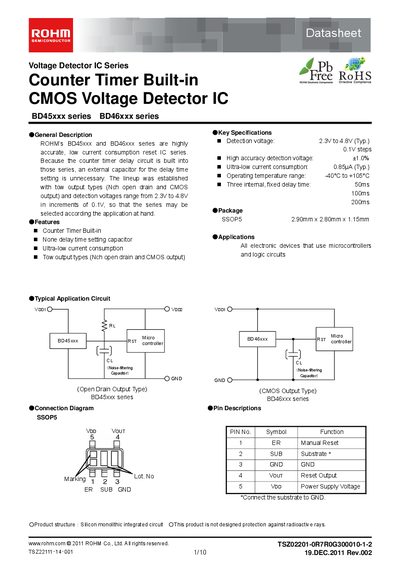

ROHM BD45231G Manual
The BD45xxx and BD46xxx series are CMOS voltage detector ICs with a built‑in counter timer, eliminating the need for an external delay capacitor. Two output types are offered: N‑channel open‑drain and CMOS, with detection voltages from 2.3 V to 4.8 V in 0.1 V steps.
The datasheet includes electrical characteristics, absolute maximum ratings, pin assignments, typical application circuits, and extensive precautionary notes for design, mounting, and handling. It is intended for use in a wide range of electronic equipment such as AV, telecommunications, and home appliances.
ROHM BD45xxx specifications
| Detection voltage range | 2.3 V to 4.8 V (typ.) |
|---|---|
| Detection voltage accuracy | ±1.0 % |
| Operating temperature range | -40 °C to +105 °C |
| Built‑in delay times | 50 ms, 100 ms, 200 ms |
| Package | SSOP5 2.90 mm × 2.80 mm × 1.15 mm |
Source: ROHM BD45231G Manual
All ROHM BD45xxx documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the detection voltage range of the BD45xxx/BD46xxx series?
The detection voltage ranges from 2.3 V to 4.8 V in 0.1 V steps.
From: ROHM BD45231G Manual
What are the built‑in delay times available?
The device provides three fixed internal delay times: 50 ms, 100 ms, and 200 ms.
From: ROHM BD45231G Manual
What supply voltage range can the IC operate with?
The IC can operate with a supply voltage from 0.3 V to 10 V.
From: ROHM BD45XXXG / BD46XXXG Voltage Detector IC Datasheet
What package type are the BD45XXXG and BD46XXXG offered in?
Both devices are supplied in an SSOP‑5 (5‑lead) package.
From: ROHM BD45XXXG / BD46XXXG Voltage Detector IC Datasheet
