The WV-CS950 series is a high-speed intelligent camera with 30x optical zoom and 10x digital zoom, which can accurately identify distant objects. It has 160x dynamic range, which can perform well even when the contrast changes with the scene. For any monitoring object, the non-regional natural contrast image correction technology can ensure the accurate reproduction of its color. The horizontal resolution of 540 lines in color mode and 570 lines in black and white mode marks a huge progress in color reproduction technology. In addition, even at a low illumination of 0.5 Lux (color mode) and 0.04 Lux (black and white mode), clear images can be captured. Adaptive digital noise reduction technology can effectively solve the tail phenomenon of target images such as car headlights. The focus can be achieved smoothly with 0.065 ° / second super fine rotation control technology and powerful zoom capability. WV-CS950 series makes a significant improvement in target recognition technology.
The WV‑CS950 series integrates a 30× optical zoom lens with 10× digital zoom, delivering up to 300× total zoom and advanced image‑stabilizing, scene‑change detection, and auto‑tracking functions. It offers high image quality with 540‑line (color) and 570‑line (black‑white) horizontal resolution and a pixel‑based 160× dynamic range, performing well even at low illumination levels.

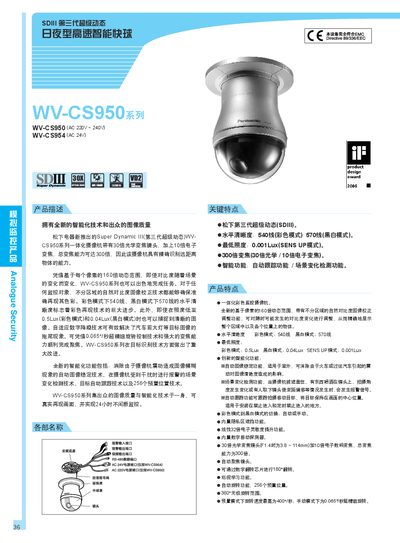

This manual covers product description, key features, detailed specifications, control functions, mounting options, and step‑by‑step instructions for installation, configuration, and operation of the camera. It also includes information on power requirements, environmental limits, and troubleshooting guidance. This manual is written in Chinese.
| Model | WV‑CS950 (AC 220‑240V) / WV‑CS954 (AC 24V) |
|---|---|
| Horizontal Resolution (Color) | 540 lines |
| Horizontal Resolution (B&W) | 570 lines |
| Minimum Illumination (Color) | 0.5 Lux |
| Minimum Illumination (B&W) | 0.04 Lux |
| Optical Zoom | 30× |
| Rotation Range | 360° continuous |
| Preset Positions | 256 |
| Dimensions (W×H×D) | 154.5 mm × 233 mm |
| Weight | ≈22 kg |
| Operating Temperature | -10 °C to +50 °C |
The camera needs at least 0.5 Lux in color mode.
It supports 256 preset positions.
In manual mode the rotation speed is about 0.065 "/sec.
