Panasonic WV-CF212 Color CCTV Camera Operating Instructions
This manual provides operating instructions for the Panasonic WV-CF212 series digital signal processing color CCD camera, designed for video surveillance. It details precautions for handling and operation, including temperature and humidity limits, and warnings against exposing the camera to moisture or bright light sources like the sun.
The document covers installation procedures, including mounting the camera on a junction box or directly on a wall/ceiling, and connecting power and video cables. It also explains how to adjust the camera's panning, tilting, azimuth, zoom, and focus using the provided levers and screws.
Panasonic WV-CF212 specifications
| Pick-up device | 768 (H) x 492 (V) pixels, interline transfer CCD |
|---|---|
| Scanning system | 2 : 1 interlace |
| Scanning | 525 lines / 60 fields / 30 frames |
| Horizontal resolution | 480 lines |
| Video output | 1.0 V[p-p] NTSC composite |
| Automatic Gain Control | +18 dB |
| Minimum illumination | 2.0 lx (0.2 foot-candle) at F1.4 (WIDE) |
| Panning range | ±100° |
| Tilting range | ±75° |
| Azimuth range | ±100° |
| Power source | 12 V DC, 240 mA |
| Dimensions | ø155 mm x 87 mm (H) |
| Weights | 0.48 kg (1.06 lbs.) |
Source: Panasonic WV-CF212 Color CCTV Camera Operating Instructions
All Panasonic WV-CF212 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the operating temperature range for the camera?
The camera should be operated where the temperature is between –10 °C to +50 °C (14 °F to 122 °F).
From: Panasonic WV-CF212 Color CCTV Camera Operating Instructions
What power supply is required for the camera?
The camera requires a 12 V DC, 240 mA power supply.
From: Panasonic WV-CF212 Color CCTV Camera Operating Instructions

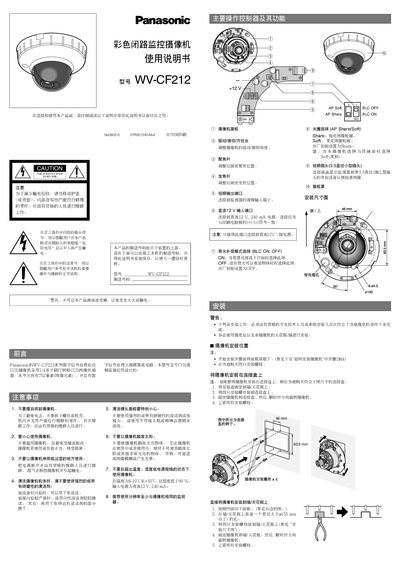

What power supply does the WV‑CF212 require?
It requires a 12 V DC power source capable of delivering 240 mA.
From: Panasonic WV-CF212 Color Closed‑Circuit Monitoring Camcorder User Manual
How should the camcorder be mounted?
Mount the camcorder on a ceiling or wall using four mounting bolts, ensuring the support can bear its weight and following the installation steps described.
From: Panasonic WV-CF212 Color Closed‑Circuit Monitoring Camcorder User Manual
