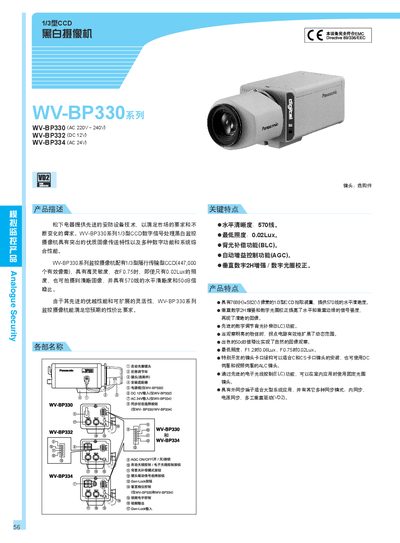

The document introduces the advanced security equipment technology provided by Panasonic to meet market demand. It describes the features and performance of the WV-BP330 series 1/3-inch CCD digital signal processing black and white surveillance camera.
The WV‑BP330 series are 1/3‑type CCD black‑and‑white security cameras offering high sensitivity and clear image transmission. They support multiple power options (AC 220‑240 V, DC 12 V, AC 24 V) and provide flexible synchronization modes for integration into larger systems.
Key features include 570‑line horizontal resolution, low‑light performance down to 0.02 Lux at F0.75, automatic gain control, back‑light compensation, and interchangeable C‑mount or CS‑mount lenses. The cameras output 10 V p‑p CCIR composite video via a BNC connector and meet EMC Directive 89/33/E/EEC standards. This manual is written in Chinese.
| Image sensor | 768(H) x 582(V) pixels, interline transfer CCD |
|---|---|
| Horizontal resolution | 570 lines |
| Minimum illumination | F0.75 0.02 Lux (F1.2 0.06 Lux) |
| Signal‑to‑noise ratio | 50 dB (AGC off) |
| Video output | 10 V p‑p CCIR composite / BNC connector |
| Power supply | AC 220‑240 V 50 Hz, DC 12 V, AC 24 V 50 Hz |
| Power consumption | 45 W, 250 mA, 3.5 W |
| Dimensions (without lens) | 67 mm (W) × 55 mm (H) × 123 mm (D) |
| Weight | ≈63.5 g / 44.5 g / 47.0 g |
| Lens mount | C‑mount or CS‑mount |
The camera can capture clear images at 0.02 Lux when the aperture is set to F0.75 (and at 0.06 Lux at F1.2).
The cameras support both C‑mount and CS‑mount lenses.
It provides a 10 V peak‑to‑peak CCIR composite video output and a BNC connector.
The camera can be set to internal sync, external sync, power sync, or multiplexed vertical drive (VD2).
