Start here

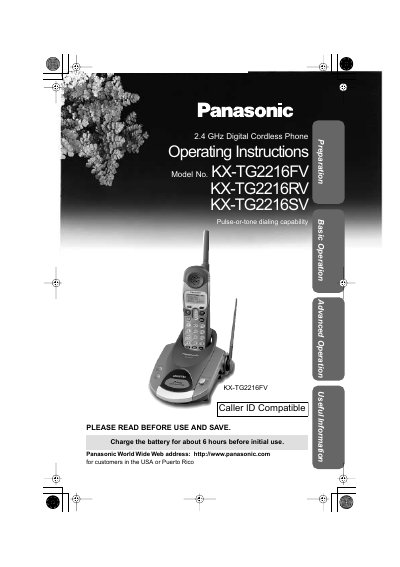

Panasonic KX-TG2216FV KX-TG2216RV KX-TG2216SV Manual
This document provides operating instructions for the Panasonic KX-TG2216 Series 2.4 GHz Digital Cordless Phone. It covers initial battery charging, installation of accessories like the headset and wall mount, and basic connection procedures to a telephone line.
The manual details advanced features such as Caller ID compatibility, Voice Mail Service integration, and programmable functions including ringer volume adjustment and dialing modes. It also includes troubleshooting guides, safety instructions, and specific specifications for both the base unit and handset.
Panasonic KX-TG2216 specifications
| Frequency | 2.402 GHz — 2.480 GHz |
|---|---|
| Battery Type | Ni-MH battery (2.4 V, 1,500 mAh) |
| Base Unit Dimensions | Approx. 91 mm x 136 mm x 184 mm |
| Handset Dimensions | Approx. 246 mm x 54 mm x 39 mm |
| Power Consumption (Standby) | Approx. 2.6 W |
Source: Panasonic KX-TG2216FV KX-TG2216RV KX-TG2216SV Manual
All Panasonic KX-TG2216 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What are the dimensions of the handset antenna?
The antenna is a narrow protrusion that is 2.8 inches long.
From: Panasonic KX-TG2216 2.4 GHz Digital Cordless Phone Control Panel Layout
How does the base unit cradle charge the handset?
The handset stands upright in the cradle with buttons facing front, and the unit beeps when set properly.
From: Panasonic KX-TG2216 2.4 GHz Digital Cordless Phone Control Panel Layout
How long should the battery be charged before initial use?
Charge the battery for about 6 hours before initial use.
What is the recommended location for the base unit?
Place it in a high and central location away from electrical appliances or other cordless phones.
