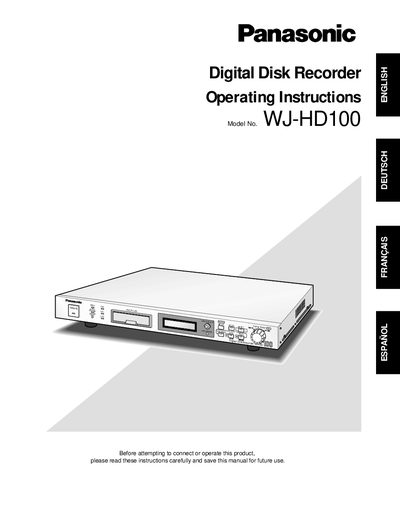

Panasonic WJ‑HD100 Digital Disk Recorder Operating Instructions
The WJ‑HD100 digital disk recorder is designed for surveillance systems, offering up to 960 hours of recording on a hard disk and a CompactFlash card slot for easy image transfer. The manual provides detailed guidance on installation, wiring, and mounting, as well as safety precautions and power requirements.
Key functions include recording, playback, alarm handling, and remote control via RS‑232C. The device supports multiple video inputs, audio input, and series recording for extended coverage. Troubleshooting tips and specifications are included to aid both users and service personnel.
Panasonic WJ-HD100 specifications
| Required Power | 220‑240 V AC 50 Hz |
|---|---|
| Power Consumption | 22 W |
| Operating Temperature | +5 °C to +45 °C (41 °F to 113 °F) |
| Dimensions (W×H×D) | 420 mm × 44 mm × 350 mm |
| Weight | 5.2 kg (2.4 lb) |
| Audio Input | –10 dBV, 10 kΩ, RCA |
| Alarm Input | Non‑voltage make contact, ≥100 ms |
| RS‑232C Port | 9‑pin D‑Sub connector |
Source: Panasonic WJ‑HD100 Digital Disk Recorder Operating Instructions
All Panasonic WJ-HD100 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What power source does the WJ‑HD100 require?
It requires a 220‑240 V AC supply at 50 Hz.
From: Panasonic WJ‑HD100 Digital Disk Recorder Operating Instructions
How much power does the recorder consume?
The unit consumes 22 W of power.
From: Panasonic WJ‑HD100 Digital Disk Recorder Operating Instructions
