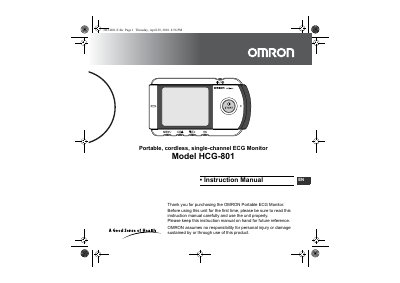

Omron HCG-801 Portable ECG Monitor Instruction Manual
User Manual 56 pages · 1.5 MB · EN
This manual guides users through safe use of the Omron HCG-801 portable, cordless, single‑channel ECG monitor. It covers intended use, safety precautions, battery installation, SD‑card handling, measurement procedures, data management, and basic troubleshooting.
Technical specifications, regulatory information, and general heart‑health background are included, along with detailed diagrams of the unit’s controls and display functions.
Omron HCG-801 specifications
| Heart rate range | 2 to 200 beats/min |
|---|---|
| Bandwidth | 0.05 to 40 Hz |
| Sampling rate | 125 Hz |
| Display | Graphic LCD |
| Internal memory capacity | 5 measurements |
| SD‑card capacity | 300 measurements |
| Power supply | 2 × LR03 (AAA) batteries |
| Battery life | ≈ 400 measurements with alkaline batteries |
| Operating humidity | 30 % to 85 % RH |
| Weight | ≈ 130 g |
| Dimensions | 121 mm × 67 mm × 24 mm (W × H × D) |
| Ingress protection | IP20 |
Source: Omron HCG-801 Portable ECG Monitor Instruction Manual
All Omron HCG-801 documents by type
User Manual 2
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many ECG measurements can be stored in the internal memory?
The unit can store up to 5 measurements in its internal memory.
What type of batteries does the HCG‑801 use?
It uses two LR03 (AAA) batteries.
