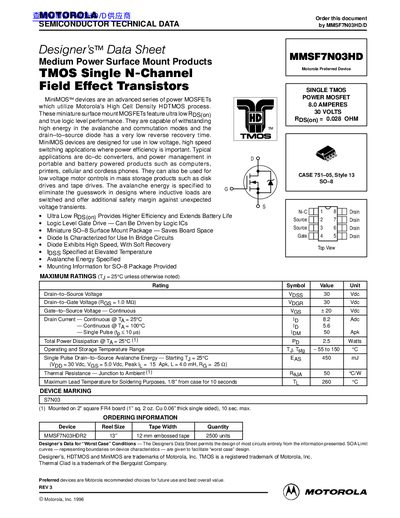

This document is a Designer's Data Sheet for the Motorola MMSF7NO3HD, a MiniMOS™ device featuring a single N-channel field effect transistor. It is designed for low voltage, high speed switching applications such as DC-DC converters and power management in portable products. The device utilizes Motorola's High Cell Density (HDTMOS) process to achieve ultra-low on-resistance and true logic level performance.
The datasheet provides comprehensive electrical characteristics, including maximum ratings, off and on characteristics, dynamic characteristics, and switching parameters. It also includes typical electrical characteristic curves illustrating on-region behavior, transfer characteristics, and capacitance variations. The document specifies the device is housed in a miniature SO-8 surface mount package.
| Drain-to-Source Voltage | 30 Vdc |
|---|---|
| Drain Current (Continuous @ 25°C) | 8.2 Adc |
| Total Power Dissipation @ 25°C | 25 Watts |
| Operating Temperature Range | -55 to 150 °C |
| Package Type | SO-8 |
The continuous drain current is 8.2 Adc at 25°C and 5.6 Adc at 100°C.
Yes, it features true logic level performance and can be driven by logic ICs.
