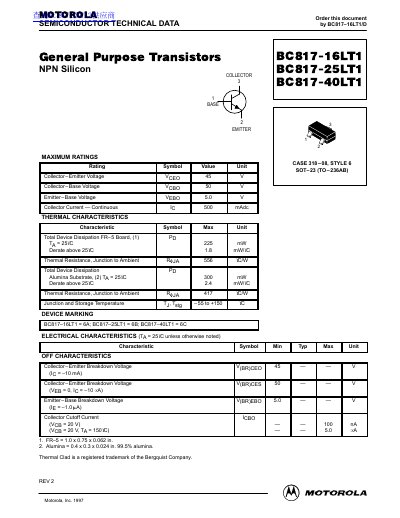

Motorola BC817-16LT1/25LT1/40LT1 General Purpose Transistors Datasheet

Datasheet 4 pages · 71 KB · EN

This document provides technical data for the Motorola BC817-16LT1, BC817-25LT1, and BC817-40LT1 NPN silicon general purpose transistors. It details maximum ratings, electrical characteristics, and thermal properties for devices in the SOT-23 (TO-236AB) package.

The datasheet includes specific information for surface mount applications, such as recommended minimum footprints and power dissipation calculations based on board materials like FR-5 or alumina substrates. It also outlines soldering precautions to prevent device failure due to thermal stress.

Read online

Motorola BC817-16LT1 specifications

Collector-Emitter Voltage (VCEO)	45 V
Collector Current (Continuous)	500 mA
Junction Temperature Range	-55 to +150 °C
DC Current Gain (BC817-16)	100 to 250
Collector-Emitter Saturation Voltage	0.7 V
Current-Gain Bandwidth Product	100 MHz

Source: Motorola BC817-16LT1/25LT1/40LT1 General Purpose Transistors Datasheet
