Start here

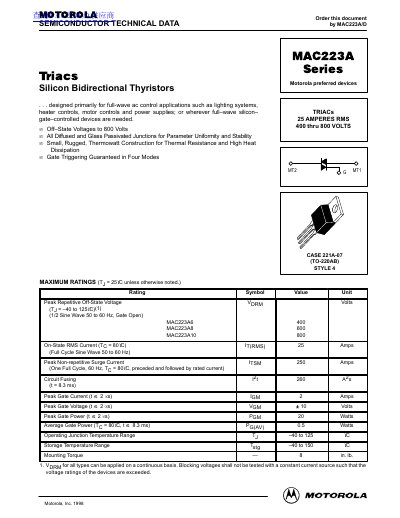

MOTOROLA MAC23A Series handbook
This document provides technical data for the Motorola MAC223A Series of Silicon Bidirectional Thyristors (Triacs). These devices are designed primarily for full-wave AC control applications such as lighting systems, heater controls, motor controls, and power supplies. The series offers off-state voltages up to 800 Volts and an on-state RMS current rating of 25 Amperes.
Read onlineMotorola MAC223A Series specifications
| Peak Repetitive Off-State Voltage (VDRM) | 400, 600, or 800 Volts |
|---|---|
| On-State RMS Current (IT(RMS)) | 25 Amps |
| Peak Non-repetitive Surge Current (ITSM) | 250 Amps |
| Operating Junction Temperature Range (Tj) | -40 to 125 °C |
| Thermal Resistance, Junction to Case (RθJC) | 12 °C/W |
| Package Style | CASE 2214-07 (TO-220AB) |
Source: MOTOROLA MAC23A Series handbook
All Motorola MAC223A Series documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the primary applications for the MAC223A Series Triacs?
These devices are designed primarily for full-wave AC control applications such as lighting systems, heater controls, motor controls, and power supplies.
What is the maximum on-state RMS current rating for the MAC223A Series?
The maximum on-state RMS current is 25 amps when the case temperature is 80°C.
What are the primary applications for these thyristors?
They are designed primarily for full-wave AC control applications such as lighting systems, heater controls, motor controls, and power supplies.
What is the maximum operating junction temperature?
The maximum operating junction temperature is 125 °C.
