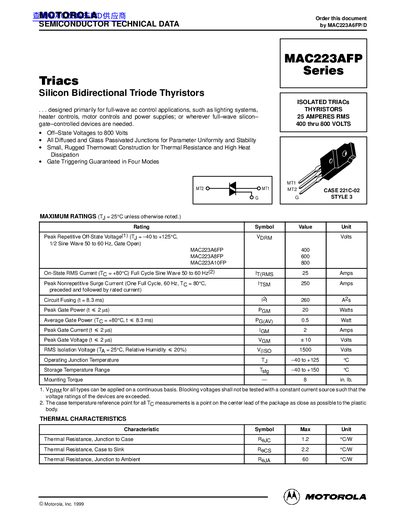

MOTOROLA MAC23AFP Series handbook
This document provides technical specifications for the Motorola MAC223AFP Series, which are silicon bidirectional triode thyristors designed primarily for full-wave AC control applications such as lighting systems, heater controls, and motor controls. The devices feature diffused and glass passivated junctions for parameter uniformity and stability, housed in a small, rugged thermowatt construction.
Read onlineMotorola MAC223AFP specifications
| Peak Repetitive Off-State Voltage | 400 to 800 Volts |
|---|---|
| On-State RMS Current | 25 Amps |
| Peak Nonrepetitive Surge Current | 250 Amps |
| RMS Isolation Voltage | 1500 Volts |
| Operating Junction Temperature | -40 to +125 °C |
| Thermal Resistance, Junction to Case | 1.2 °C/W |
| Peak Gate Power | 20 Watts |
All Motorola MAC223AFP documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum operating junction temperature?
The maximum operating junction temperature is +125 °C.
What is the peak nonrepetitive surge current rating?
The peak nonrepetitive surge current is 250 Amps for one full cycle at 60 Hz.
What are the primary applications for these thyristors?
They are designed primarily for full-wave AC control applications such as lighting systems, heater controls, motor controls and power supplies.
What is the maximum operating junction temperature?
The maximum operating junction temperature (TJ) is +125 °C.
