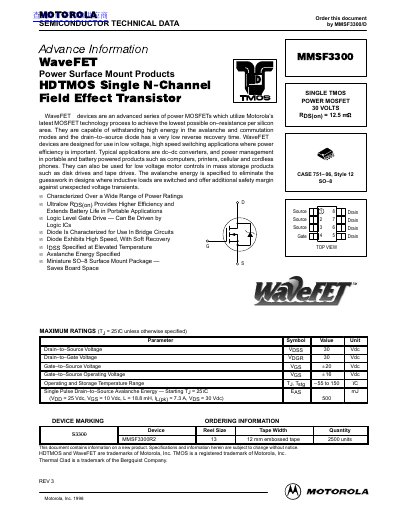

Motorola's TMOS Power MOSFET Transistor Device Data introduces the features and characteristics of the WaveFET series products, as well as their applicable application fields.
The document describes the Motorola WaveFET™ MMSF3300, an advanced series of power MOSFETs designed for low voltage, high speed switching applications. These devices utilize Motorola's RpS(on) technology to achieve the lowest possible on-resistance per silicon area and are capable of withstanding high energy in avalanche and commutation modes.
| Drain-to-Source Voltage | 30 Vdc |
|---|---|
| Total Power Dissipation (Ta = 25°C) | 2.5 Watts |
| Thermal Resistance Junction-to-Ambient | 50 °C/W |
| Static Drain-to-Source On-Resistance (Typ) | 12.5 mQ |
Typical applications include dc-dc converters, power management in portable products like computers and phones, and low voltage motor controls.
The device operates and stores within a temperature range of -55 to 150 °C.
