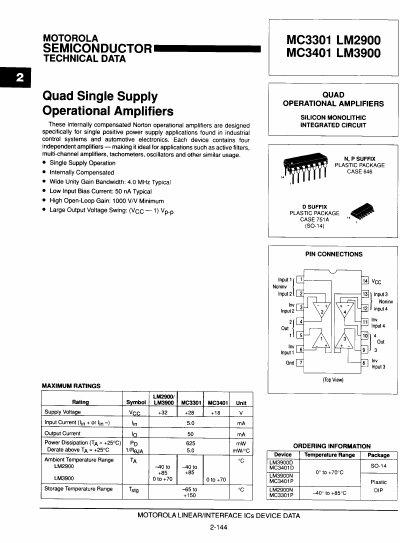

Motorola MC3301, MC3401, LM2900, LM3900 Quad Operational Amplifiers Datasheet
This document provides technical data for Motorola's Quad Single Supply Operational Amplifiers, specifically the MC3301, MC3401, LM2900, and LM3900 series. These internally compensated devices are designed for single positive power supply applications in industrial control systems and automotive electronics. Each device contains four independent amplifiers suitable for active filters, multi-channel amplifiers, tachometers, and oscillators.
Read onlineMotorola MC3401 specifications
| Unity Gain Bandwidth | 4.0 MHz Typical |
|---|---|
| Input Bias Current | 50 nA Typical |
| Open-Loop Gain | 1000 V/V Minimum |
| Output Voltage Swing | (Vcc — 1) Vp-p |
Source: Motorola MC3301, MC3401, LM2900, LM3900 Quad Operational Amplifiers Datasheet
All Motorola MC3401 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the typical applications for these amplifiers?
They are ideal for active filters, multi-channel amplifiers, tachometers, oscillators, and other similar usage.
From: Motorola MC3301, MC3401, LM2900, LM3900 Quad Operational Amplifiers Datasheet
Are external compensation capacitors required?
No, closed-loop stability is maintained by an on-the-chip 3-pF capacitor, so no external compensation is required.
From: Motorola MC3301, MC3401, LM2900, LM3900 Quad Operational Amplifiers Datasheet
