Start here

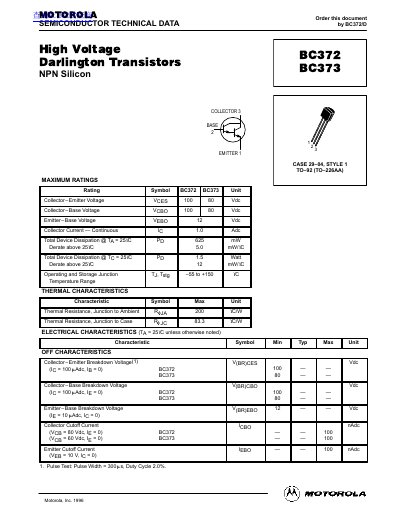

Motorola BC372/BC373 High Voltage Darlington Transistors Datasheet
This document provides technical specifications for the Motorola BC372 (High Voltage) and BC373 (NPN Silicon) High Voltage Darlington Transistors. It details maximum ratings such as collector-emitter voltage of 100V and 80V respectively, along with continuous collector current limits.
Read onlineMotorola BC373 specifications
| Collector-Emitter Voltage (BC372) | 100 Vdc |
|---|---|
| Continuous Collector Current | 1.0 Adc |
| Total Device Dissipation (Ta = 25°C) | 625 mW |
| Operating Junction Temperature Range | -55 to +150 °C |
Source: Motorola BC372/BC373 High Voltage Darlington Transistors Datasheet
All Motorola BC373 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum collector-emitter voltage for the BC372?
The maximum collector-emitter voltage (VCES) for the BC372 is 100 Vdc.
From: Motorola BC372/BC373 High Voltage Darlington Transistors Datasheet
What is the thermal resistance from junction to ambient?
The maximum thermal resistance, Junction to Ambient (Rava) is 200 °CIW.
From: Motorola BC372/BC373 High Voltage Darlington Transistors Datasheet
What is the operating supply voltage range for the MC44BC373/374?
The device operates from 4.5 V to 5.5 V supply voltage.
From: Motorola MC44BC373/374 Modulator Technical Data Manual
What is the maximum ambient temperature the device can handle?
The maximum operating ambient temperature is 75 °C.
From: Motorola MC44BC373/374 Modulator Technical Data Manual
