The MC34016 is a telephone line interface meant for use in cordless telephone base stations for CT0, CT1, CT2 and DECT. The circuit forms the interface towards the telephone line and performs all speech and line interface functions like dc and ac line termination, 2–4 wire conversion, automatic gain control and hookswitch control.
The MC34016 is a telephone line interface IC designed for cordless telephone base stations. It provides line termination, gain control, hook‑switch control and a serial‑bus interface for parameter adjustment.

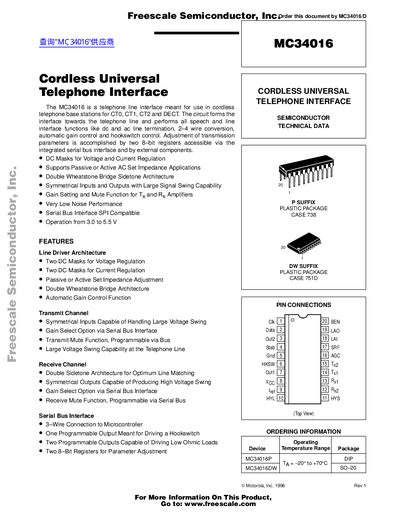

The document includes features, pin descriptions, electrical characteristics, automatic gain control details and ordering information for the MC34016P DIP and MC34016DW packages.
| Operating Supply Voltage | 3.0 V to 5.5 V |
|---|---|
| Operating Temperature Range | -20 °C to +70 °C |
| Active Transistors | 610 |
| Logic Output Drive Capability | ≥1.0 mA source, ≥5.0 mA sink |
| Serial Bus Clock Frequency | 550 kHz |
The MC34016 operates from 3.0 V to 5.5 V.
The device contains 610 active transistors.
It is rated for –20 °C to +70 °C.
