The MC10E/100E166 is a 9-bit magnitude comparator that compares the binary value of two 9-bit words and indicates whether one word is greater than, or equal to, the other.

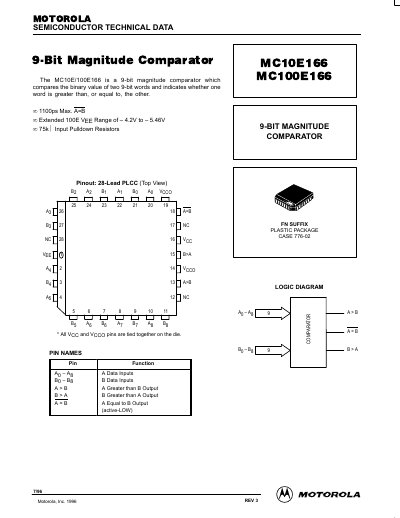

This document is a technical datasheet for the Motorola MC10E166 and MC100E166 integrated circuits. These devices are 9-bit magnitude comparators designed to compare the binary value of two 9-bit words and indicate whether one word is greater than, or equal to, the other.
| Bit Width | 9-bit |
|---|---|
| Package Type | 28-Lead PLCC |
| Operating Temperature Range | -40°C to +85°C |
It compares the binary value of two 9-bit words and indicates whether one word is greater than, or equal to, the other.
The extended voltage range for the MC100E series is from -4.2V to -5.46V.
