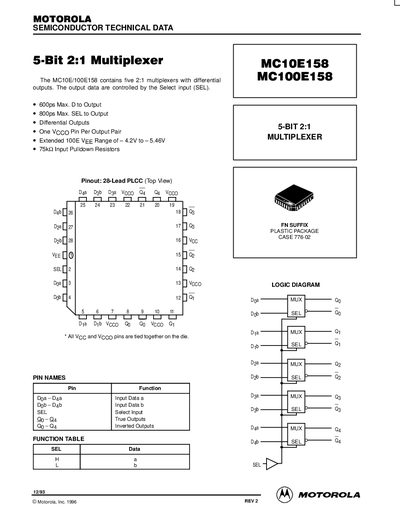

This document is a technical datasheet for the Motorola MC10E158 and MC100E158 integrated circuits. The devices contain five 2:1 multiplexers with differential outputs, where output data are controlled by a Select input (SEL). Key features include extended VEE ranges for the 100E series and specific pin configurations for a 28-lead PLCC package.
| Number of Multiplexers | Five 2:1 multiplexers |
|---|---|
| Output Type | Differential Outputs |
| Max. D to Output Delay | 600ps |
| Max. SEL to Output Delay | 800ps |
| Package Type | 28-Lead PLCC |
| Input Pulldown Resistors | 75kQ |
The extended VEE range for the 100E series is -4.2V to -5.46V.
The output data are controlled by the Select input (SEL).
