The data table mainly introduces the parameters of the Motorola Mac218 series thyristors, including blocking voltage, peak non-repetitive surge current, average gate power, and switch power supply.

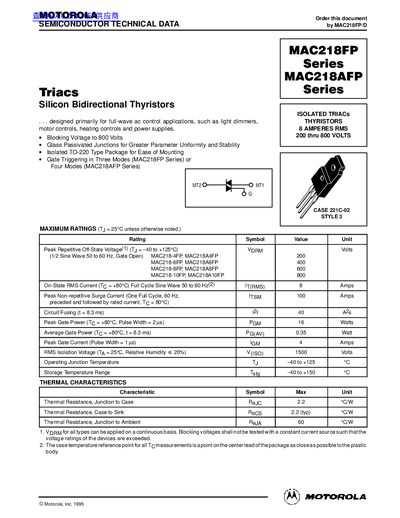

This document provides technical data for the Motorola MAC218FP and MAC218AFP Series Silicon Bidirectional Thyristors (Triacs). These devices are designed primarily for full-wave AC control applications, such as light dimmers, motor controls, heating controls, and power supplies. The series features blocking voltages up to 800 Volts and is available in an isolated TO-220 type package for ease of mounting.
| Peak Repetitive Off-State Voltage | 200 to 800 Volts |
|---|---|
| On-State RMS Current | 8 Amps |
| Peak Non-repetitive Surge Current | 100 Amps |
| Operating Junction Temperature | -40 to +125 °C |
| RMS Isolation Voltage | 1500 Volts |
| Thermal Resistance, Junction to Case | 2.2 °C/W |
They are designed primarily for full-wave ac control applications, such as light dimmers, motor controls, heating controls and power supplies.
The maximum blocking voltage for the MAC218-10FP is 800 Volts.
The peak gate power rating is 16 Watts at a case temperature of +80°C with a pulse width of 2 us.
