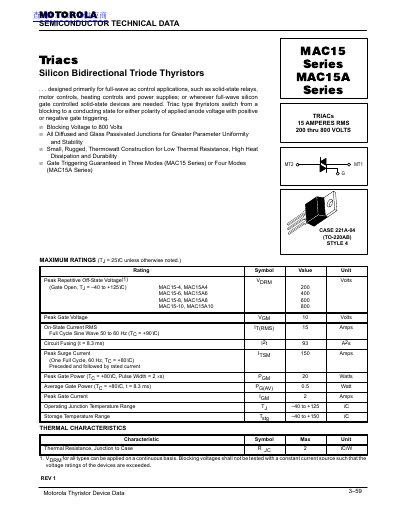

MOTOROLA MAC15 series MAC15A series datasheet
This document provides technical data for the Motorola MAC15 series of Silicon Bidirectional Triode Thyristors (TRIACs). These devices are designed primarily for full-wave AC control applications, such as solid-state relays, motor controls, heating controls, and power supplies. The thyristors switch from a blocking to a conducting state for either polarity of applied anode voltage with positive or negative gate triggering.
Read onlineMotorola MAC15A specifications
| On-State Current RMS Full Cycle Sine Wave (IT(RMS)) | 15 Amps |
|---|---|
| Peak Surge Current (One Full Cycle, 60 Hz) | 150 Amps |
| Operating Junction Temperature Range (TJ) | -40 to +125 °C |
| Thermal Resistance, Junction to Case (RθJC) | 2 °C/W |
All Motorola MAC15A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the primary applications for MAC15 series thyristors?
They are designed primarily for full-wave AC control applications such as solid-state relays, motor controls, heating controls and power supplies.
How many gate triggering modes are guaranteed for the MAC15A series?
The MAC15A Series guarantees four modes of gate triggering.
What are the primary applications for these Triacs?
They are designed primarily for full-wave ac control applications such as solid-state relays, motor controls, heating controls and power supplies.
What is the maximum peak gate current?
The peak gate current (lam) is 2 Amps.
