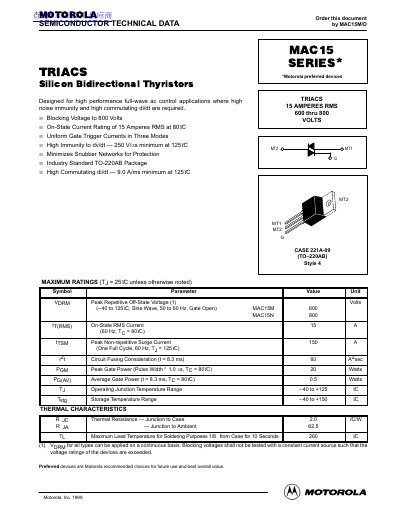

Motorola MAC15 Series TRIAC Datasheet
This datasheet provides technical specifications for the Motorola MAC15M/D series of silicon bidirectional thyristors (TRIACs). These devices are designed for high-performance full-wave AC control applications requiring high noise immunity and high commutating di/dt capabilities. The document details maximum ratings, electrical characteristics, thermal properties, and package dimensions.
Read onlineMotorola MAC15 specifications
| Blocking Voltage (MAC15M) | 600 Volts |
|---|---|
| Blocking Voltage (MAC15N) | 800 Volts |
| On-State Current Rating | 15 Amperes RMS at 80°C |
| Peak Non-repetitive Surge Current | 150 A |
| Operating Junction Temperature Range | -40 to +125 °C |
| Thermal Resistance (Junction to Case) | 2.0 °CAV |
All Motorola MAC15 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum on-state RMS current rating for these TRIACs?
The devices have an on-state current rating of 15 Amperes RMS at 80°C.
What is the minimum critical rate of rise for off-state voltage?
The device has a high immunity to dv/dt with a minimum rating of 250 V/us at 125°C.
What are the primary applications for MAC15 series thyristors?
They are designed primarily for full-wave AC control applications such as solid-state relays, motor controls, heating controls and power supplies.
How many gate triggering modes are guaranteed for the MAC15A series?
The MAC15A Series guarantees four modes of gate triggering.
What are the primary applications for these Triacs?
They are designed primarily for full-wave ac control applications such as solid-state relays, motor controls, heating controls and power supplies.
What is the maximum peak gate current?
The peak gate current (lam) is 2 Amps.
