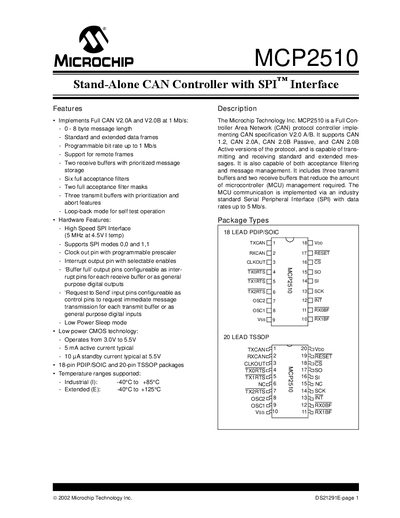

Microchip MCP2510 CAN Controller Data Sheet
The MCP2510 is a stand‑alone CAN controller that provides a full CAN 2.0A/B protocol implementation with an SPI interface for easy integration into microcontroller‑based systems. It includes three transmit buffers, two receive buffers, acceptance filters, and a low‑power sleep mode.
The document covers device functionality, CAN message frame formats, bit timing, error detection, interrupt handling, electrical characteristics, packaging options, and register maps, providing all the information needed for hardware designers and firmware developers.
MICROCHIP MCP2510 specifications
| Operating Voltage | 3.0 V to 5.5 V |
|---|---|
| Active Current | 5 mA typical |
| Standby Current | 10 µA typical at 5.5 V |
| Package Types | 18‑pin PDIP/SOIC and 20‑pin TSSOP |
| Temperature Range | Industrial: –40 °C to +85 °C; Extended: –40 °C to +125 °C |
| SPI Interface Speed | 5 MHz at 4.5 V |
| Supported SPI Modes | 0,0 and 1,1 |
| Sleep Mode | Low Power Sleep mode |
