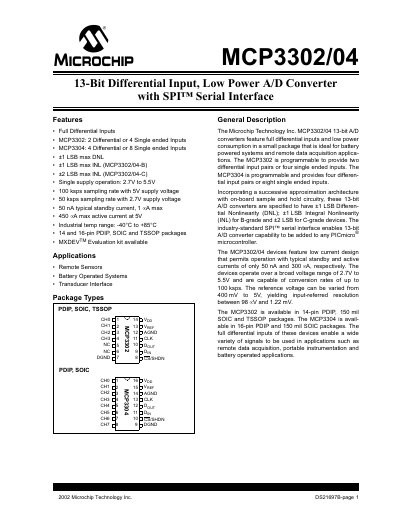

Microchip MCP3302/04 Datasheet
The Microchip Technology Inc. MCP3302/04 are 13-bit analog-to-digital (A/D) converters featuring full differential inputs and a low-power design ideal for battery-operated systems and remote data acquisition applications. The devices utilize a successive approximation architecture with on-board sample and hold circuitry, specified to have +1 LSB Differential Nonlinearity (DNL) and Integral Nonlinearity (INL) depending on the grade.
These converters feature an industry-standard SPI serial interface compatible with PICmicro microcontrollers. They operate over a broad voltage range of 2.7V to 5.5V, supporting sampling rates up to 100 ksps at 5V and 50 ksps at 2.7V. The MCP3302 offers two differential or four single-ended inputs, while the MCP3304 provides four differential or eight single-ended inputs.
MICROCHIP MCP3302 specifications
| Resolution | 13-bit (12 data bits + sign bits) |
|---|---|
| Sampling Frequency | Up to 100 ksps at 5V supply |
| Supply Voltage Range | 2.7V to 5.5V |
| Integral Nonlinearity (INL) | +1 LSB for B-grade, +2 LSB for C-grade |
| Differential Nonlinearity (DNL) | +1 LSB max |
| Standby Current | 50 nA typical, 1 uA max |
Source: Microchip MCP3302/04 Datasheet
