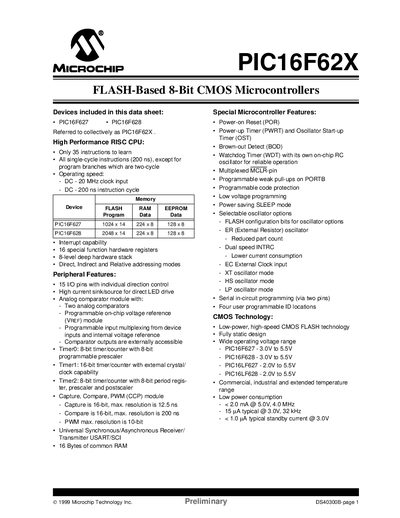

Microchip PIC16F62X Datasheet
The PIC16F62X family comprises low‑cost, high‑performance 8‑bit CMOS microcontrollers with FLASH program memory, RAM, EEPROM, and a rich set of peripherals. They support a 35‑instruction RISC core, an eight‑level hardware stack, and multiple interrupt sources.
Key features include up to 20 MHz operation, 3.0‑5.5 V (2.0‑5.5 V for LF variants) supply range, 15 configurable I/O pins, three timer modules (Timer0, Timer1, Timer2), comparator modules, a USART, and on‑chip voltage reference. The devices are offered in 18‑pin DIP, SOIC, and SSOP packages and support in‑circuit serial programming.
MICROCHIP PIC16F62X specifications
| Maximum Clock Frequency | 20 MHz |
|---|---|
| Instruction Cycle Time | 200 ns |
| Flash Program Memory (words) | 1024 (PIC16F627) / 2048 (PIC16F628) |
| RAM Data Memory (bytes) | 224 |
| EEPROM Data Memory (bytes) | 128 |
| I/O Pins | 15 |
| Voltage Supply Range | 3.0 V – 5.5 V (2.0 V – 5.5 V for LF devices) |
Source: Microchip PIC16F62X Datasheet
All MICROCHIP PIC16F62X documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating voltage range for the PIC16F627?
The PIC16F627 operates from 3.0 V to 5.5 V.
How many I/O pins does the PIC16F62X family provide?
The family provides 15 I/O pins with individual direction control.
How many I/O pins are available on the PIC16F62X family?
Each device provides 15 I/O pins with individual direction control.
From: Microchip PIC16F62X Flash-Based 8-Bit CMOS Microcontrollers Datasheet
Which timer modules are included in the PIC16F62X devices?
The devices include TMRO, TMR1 and TMR2 timer modules.
From: Microchip PIC16F62X Flash-Based 8-Bit CMOS Microcontrollers Datasheet
