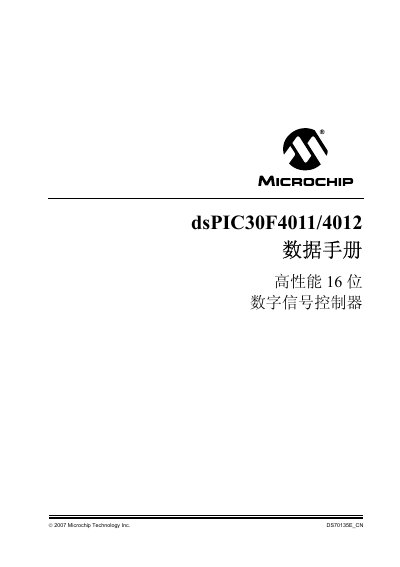

Microchip dsPIC30F4011/4012 Datasheet
This document provides a comprehensive description of the dsPIC30F4011 and dsPIC30F4012 microcontrollers, covering architecture, memory organization, peripheral modules, and electrical characteristics. It includes block diagrams, pin‑out information, and detailed specifications for each functional block.
The data sheet also lists development support resources, package options, and ordering information, helping designers select and integrate the devices into motor‑control, power‑conversion, and embedded applications. This manual is written in Chinese.
Microchip dsPIC30F4011/4012 specifications
| Flash program memory | 48 KB |
|---|---|
| Data RAM | 2 KB |
| Data EEPROM | 1 KB |
| Maximum operating speed | 30 MIPS |
| PWM output channels | 6 |
| Timers | 5 × 16‑bit (pairable to 32‑bit) |
All Microchip dsPIC30F4011/4012 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum processing speed of the dsPIC30F4011/4012?
The devices can achieve up to 30 MIPS when driven by a 40 MHz external clock.
How many PWM output channels are available?
The controller provides six PWM output channels with complementary or independent modes.
What is the processing performance in MIPS?
The device delivers up to 30 MIPS.
From: Microchip dsPIC30F4011/4012 16-bit DSP Microcontroller Datasheet
What is the supported operating voltage range?
The controller operates from 2.5 V to 5.5 V.
From: Microchip dsPIC30F4011/4012 16-bit DSP Microcontroller Datasheet
What is the maximum operating speed of the dsPIC30F4011/4012?
The device can operate up to 30 MIPS with a DC to 40 MHz external clock input.
How much Flash memory does the dsPIC30F4011/4012 provide?
It includes 48 KB of on‑chip Flash program space (16 K instruction words).
