Key facts
- Brand
- MICROCHIP
- Model
- PIC24H
- Industry
- Industrial
- Documents
- 3
- Languages
- ZH · EN
- Last added
- 2026-10-18
Start here

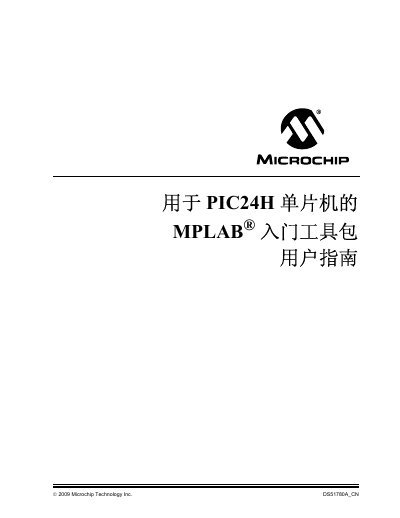

MPLAB Starter Kit for PIC24H MCU User Guide
This manual provides instructions on using the MPLAB Starter Kit as a development and demonstration tool for PIC24H microcontroller devices. It covers the kit's features, running demonstration programs, and steps to develop applications using the MPLAB IDE. This manual is written in Chinese.
Read onlineMICROCHIP PIC24H specifications
| Operating Temperature Range | -40°C to +85°C |
|---|---|
| Maximum MIPS Performance | 40 MIPS @ 3.0-3.6V |
| Program Memory Size | Up to 256 Kbytes |
| Data SRAM Size | Up to 16 Kbytes |
| A/D Converter Resolution | 10-bit or 12-bit |
| Digital I/O Pins | Up to 85 programmable digital I/O pins |
All MICROCHIP PIC24H documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the purpose of this starter kit?
This kit serves as a development and demonstration tool for implementing processing functions on PIC24H MCU devices.
What information is available regarding the warranty registration card?
Users must complete and mail the included Warranty Registration Card to receive notifications about new product updates.
What is the operating voltage range?
The device operates at a 3.3V (±10%) operating voltage.
How many interrupt vectors are available?
There are up to 118 interrupt vectors available in the PIC24H family.
