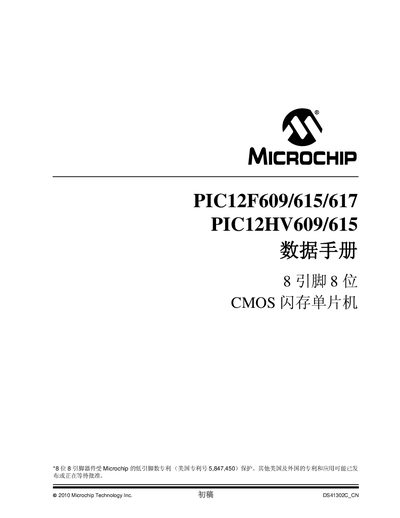

Microchip PIC12F609/615/617/12HV609/615 8-bit Flash MCU Datasheet
This document is the Chinese version of the datasheet for the PIC12F609/615/617/12HV609/615 series of 8-pin 8-bit CMOS Flash microcontrollers. It covers device overviews, memory architecture, oscillator modules, I/O ports, timers, comparators, ADCs, and enhanced capture/compare/PWM modules.
The datasheet includes specific details on high-performance RISC CPU features, low-power modes, and peripheral capabilities such as the 10-bit A/D converter and 16-bit capture modules. It also provides electrical specifications, DC and AC characteristic charts, and package information for various package types including PDIP, SOIC, MSOP, and DFN. This manual is written in Chinese.
Microchip PIC12F609/615/617/12HV609/615 specifications
| Flash Memory Write Cycles | 100,000 times |
|---|---|
| Flash Data Retention | > 40 years |
| Operating Voltage (PIC12F609/615/617) | 2.0V to 5.5V |
| Operating Voltage (PIC12HV609/615) | 2.0V to user defined |
| Instruction Set Size | 35 instructions |
| Instruction Cycle Time | 200 ns |
| ADC Resolution | 10-bit |
| I/O Pins | 5 or 6 pins |
Source: Microchip PIC12F609/615/617/12HV609/615 8-bit Flash MCU Datasheet
All Microchip PIC12F609/615/617/12HV609/615 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating voltage range for the PIC12F609/615/617?
The operating voltage range is 2.0V to 5.5V.
From: Microchip PIC12F609/615/617/12HV609/615 8-bit Flash MCU Datasheet
How many instructions are in the instruction set?
The instruction set contains 35 instructions.
From: Microchip PIC12F609/615/617/12HV609/615 8-bit Flash MCU Datasheet
What is the operating voltage range for the PIC12F609/615/617 devices?
The standard devices operate from 2.0 V to 5.5 V.
How much standby current does the PIC12F609/615/617 draw?
Typical standby current is 50 nA at 2.0 V.
