Start here

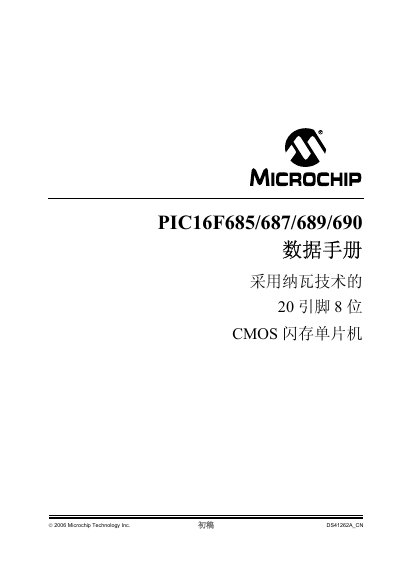

Microchip PIC16F685/687/689/690 8-bit Flash MCU Datasheet
This document is a datasheet for the PIC16F685/687/689/690 series, which are 20-pin 8-bit CMOS Flash microcontrollers utilizing nanowatt technology. The text provides a comprehensive overview of the device architecture, including the RISC CPU, memory organization, and various peripheral modules such as timers, comparators, and analog-to-digital converters. This manual is written in Chinese.
Read onlineMicrochip PIC16F685/687/689/690 specifications
| Operating Voltage | 2.0V-5.5V |
|---|---|
| Flash Memory Endurance | 100,000 writes |
| EEPROM Endurance | 1,000,000 writes |
| Data Retention | > 40 years |
| A/D Converter Resolution | 10-bit |
| I/O Pins | 17 pins |
Source: Microchip PIC16F685/687/689/690 8-bit Flash MCU Datasheet
All Microchip PIC16F685/687/689/690 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the instruction set size?
The device requires learning only 35 instructions.
From: Microchip PIC16F685/687/689/690 8-bit Flash MCU Datasheet
What is the typical standby current at 2.0V?
The typical standby current is 1nA at 2.0V.
From: Microchip PIC16F685/687/689/690 8-bit Flash MCU Datasheet
What is the standby current of the PIC16F685/687/689/690?
The standby current is 1 nA at 2.0 V typical.
How many write cycles can the flash memory endure?
The flash memory can endure 100,000 write cycles.
What is the operating voltage range of the PIC16F685/687/689/690?
The devices operate from 2.0 V to 5.5 V, covering both industrial and extended temperature ranges.
How much flash memory does the PIC16F685 provide?
The PIC16F685 includes 4 KB (4096 bytes) of flash program memory.
