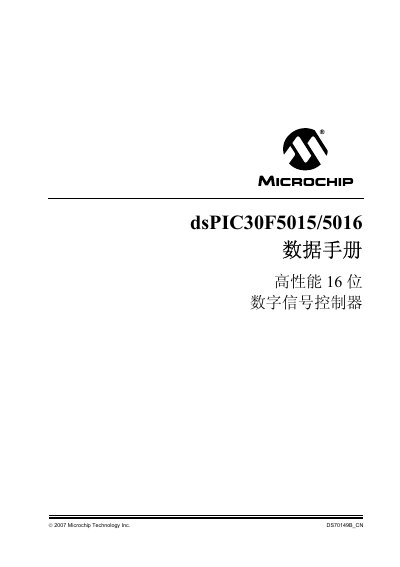

Microchip dsPIC30F5015/5016 Datasheet
The dsPIC30F5015 and dsPIC30F5016 are high‑performance 16‑bit microcontrollers that combine a RISC CPU core with a full DSP engine. They integrate flash program memory, RAM, EEPROM, multiple timers, PWM channels, communication peripherals and a 10‑bit ADC.
This datasheet provides detailed specifications, functional block diagrams, pin assignments, electrical characteristics and packaging information for designers developing motor‑control, power‑conversion or signal‑processing applications. This manual is written in Chinese.
Microchip dsPIC30F5015/5016 specifications
| Flash program memory | 66 KB |
|---|---|
| On‑chip data RAM | 2 KB |
| Data EEPROM | 1 KB |
| Maximum CPU speed | 30 MIPS |
| PWM output channels | 8 channels |
| Operating voltage range | 2.5 V – 5.5 V |
All Microchip dsPIC30F5015/5016 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the flash memory size of the dsPIC30F5015/5016?
Each device contains 66 KB of on‑chip flash program memory.
What is the maximum CPU performance of these devices?
The CPU can operate at up to 30 MIPS.
What is the flash program memory size of the dsPIC30F5015/5016?
The device provides 66 KB of on‑chip Flash program space.
How much current can each I/O pin source or sink?
Each I/O pin can source or sink up to 25 mA.
