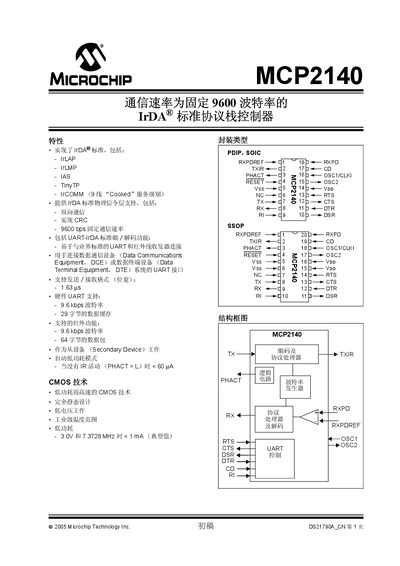

Microchip MCP2140 IrDA Communication Controller Datasheet
The MCP2140 IrDA communication controller implements the IrDA protocol stack, providing UART‑IR encoding/decoding and a low‑cost discrete IR receiver circuit. It operates with a fixed 9600 bps serial and IR interface and supports both DCE and DTE applications in embedded systems.
The device uses a 7.3728 MHz clock source, offers 29‑byte UART and 64‑byte IR buffers, and is available in PDIP, SOIC and SSOP packages. It features hardware handshaking signals (DSR, RTS, CTS) and a low‑power mode consuming less than 1 mA at 3 V. This manual is written in Chinese.
MICROCHIP MCP2140 specifications
| Baud rate | 9600 bps (fixed) |
|---|---|
| Clock frequency | 7.3728 MHz |
| Package options | PDIP 18‑pin, SOIC 18‑pin, SSOP 20‑pin |
| Operating temperature range | -40 °C to +85 °C |
| Supply voltage (typical low‑power) | 3.0 V |
| UART buffer size | 29 bytes |
| IR buffer size | 64 bytes |
Source: Microchip MCP2140 IrDA Communication Controller Datasheet
