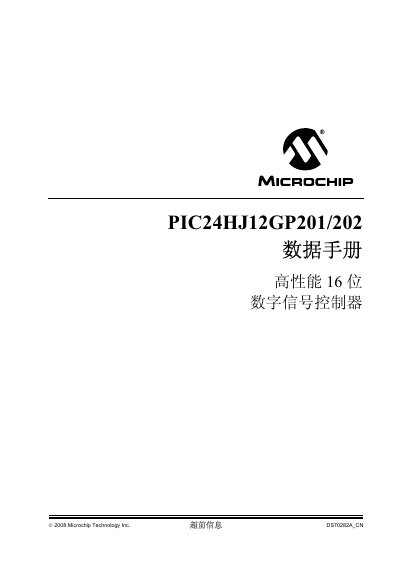

Microchip PIC24HJ12GP201/202 High‑Performance 16‑Bit Digital Signal Controller Datasheet
The PIC24HJ12GP201/202 series is a high‑performance 16‑bit digital signal controller with up to 40 MIPS operation at 3.0‑3.6 V. It offers a Harvard‑architecture CPU, 12 KB flash program memory, 1 KB SRAM, and up to 21 programmable I/O pins.
The document provides a complete description of the device’s core, memory organization, peripheral modules (timers, PWM, SPI, I²C, UART, ADC), power‑management features, package options (18‑pin SDIP/SOIC, 28‑pin SDIP/SOIC/QFN), and electrical characteristics. This manual is written in Chinese.
Microchip PIC24HJ12GP201/202 specifications
| Maximum operating speed | 40 MIPS (3.0‑3.6 V) |
|---|---|
| Flash program memory | 12 KB |
| Data SRAM | 1024 bytes |
| Programmable digital I/O pins | Up to 21 |
| Industrial temperature range | -40 °C to +85 °C |
| Package types | 18‑pin SDIP/SOIC, 28‑pin SDIP/SOIC/QFN |
Source: Microchip PIC24HJ12GP201/202 High‑Performance 16‑Bit Digital Signal Controller Datasheet
All Microchip PIC24HJ12GP201/202 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum operating speed of the PIC24HJ12GP201/202?
The controller can run up to 40 MIPS when supplied with 3.0‑3.6 V.
From: Microchip PIC24HJ12GP201/202 High‑Performance 16‑Bit Digital Signal Controller Datasheet
How much flash program memory does the device provide?
It includes 12 KB of flash program memory.
From: Microchip PIC24HJ12GP201/202 High‑Performance 16‑Bit Digital Signal Controller Datasheet
