Key facts
- Brand
- MICROCHIP
- Model
- 25AA080
- Category
- Other Electronics
- Documents
- 2
- Languages
- EN
- Last added
- 2012-06-08
Start here

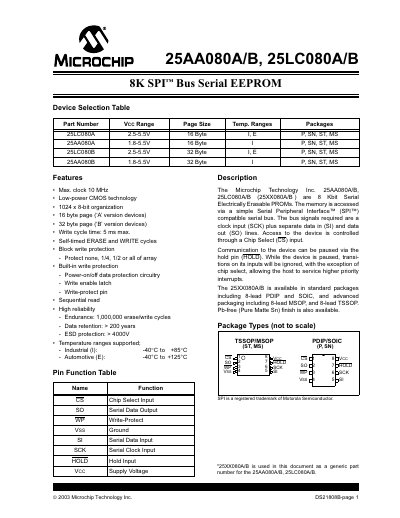

MICROCHIP 25AA080A/B 25LC080A/B handbook
Datasheet 24 pages · 524 KB · EN
This document is a datasheet for the Microchip Technology 25AA080A/B and 25LC080A/B, which are 8Kbit Serial Electrically Erasable PROMs. The devices are accessed via a Serial Peripheral Interface (SPI) compatible serial bus and are available in various packages including PDIP, SOIC, MSOP, and TSSOP.
Read onlineMICROCHIP 25AA080 specifications
| Memory Organization | 1024 x 8-bit |
|---|---|
| Max Clock Frequency | 10 MHz |
| Write Cycle Time | 5 ms max. |
| Endurance | 1,000,000 erase/write cycles |
| Data Retention | > 200 years |
| ESD Protection | > 4000V |
| Industrial Temperature Range | -40°C to +85°C |
| Automotive Temperature Range | -40°C to +125°C |
All MICROCHIP 25AA080 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum clock frequency for the 25AA080A/B?
The maximum clock frequency is 10 MHz when the supply voltage is between 4.5V and 5.5V.
What is the write cycle time for these EEPROMs?
The internal write cycle time is a maximum of 5 ms.
What supply voltage range does the 25AA080 support?
The 25AA080 operates from 1.8 V to 5.5 V.
From: Microchip 25AA080/25LC080/25C080 Serial EEPROM Datasheet
How many bytes can be written in a single page write operation?
Up to 16 bytes can be written in a single page write.
From: Microchip 25AA080/25LC080/25C080 Serial EEPROM Datasheet
