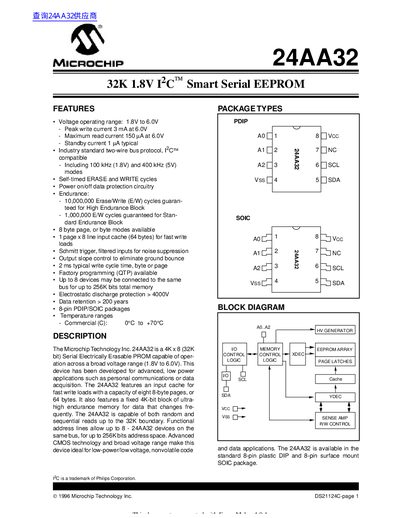

Microchip 24AA32 32K 1.8V Serial EEPROM Datasheet
The 24AA32 is a 4K × 8 (32 Kbit) serial EEPROM from Microchip Technology, designed for low‑power applications with a wide operating voltage range of 1.8 V to 6.0 V. It supports up to eight devices on a single I²C‑compatible two‑wire bus, providing up to 256 Kbits total memory.
Key features include high‑endurance memory blocks (10 M write cycles), low standby current, ESD protection over 4000 V, and fast write performance using an internal 64‑byte cache. The device is offered in 8‑pin PDIP and SOIC packages and operates from 0 °C to +70 °C (commercial) or –40 °C to +85 °C (industrial).
MICROCHIP 24AA32 specifications
| Operating voltage range | 1.8 V to 6.0 V |
|---|---|
| Peak write current | 3 mA at 6.0 V |
| Maximum read current | 150 pA at 6.0 V |
| High‑endurance write cycles | 10 M cycles |
| Standard endurance write cycles | 1 M cycles |
| Package options | 8‑pin PDIP, 8‑pin SOIC |
| Data retention | >200 years |
| ESD protection | >4000 V |
| Maximum clock frequency (Fast mode) | 400 kHz |
| Typical write cycle time | 2 ms |
| Page size | 8 bytes |
| Input cache size | 64 bytes (8 lines) |
All MICROCHIP 24AA32 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating voltage range of the 24AA32?
The device operates from 1.8 V up to 6.0 V.
How many write cycles does the high‑endurance block support?
It is guaranteed for 10 million erase/write cycles.
What supply voltage range does the 24AA32A/24LC32A support?
It operates from 1.8 V up to 5.5 V.
How many devices can be cascaded on the same I²C bus?
Up to eight devices can be cascaded on a single bus.
