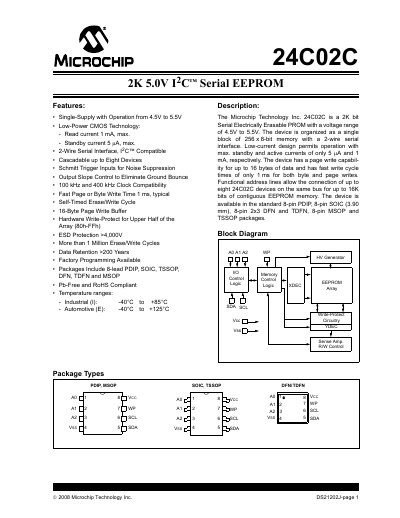

Microchip 24C02C 2K-bit Serial EEPROM Datasheet
Datasheet 30 pages · 504 KB · EN
The document describes the Microchip Technology Inc. 24C02C, a 2K bit Serial Electrically Erasable PROM featuring low-power CMOS technology and a voltage range of 4.5V to 5.5V. The device is organized as a single block of 256 x 8-bit memory with a 2-wire serial interface compatible with I2C standards.
Read onlineMicrochip 24C02C specifications
| Memory Capacity | 2K bit (256 x 8-bit) |
|---|---|
| Operating Voltage | 4.5V to 5.5V |
| Interface Type | 2-Wire Serial (I2C Compatible) |
| Max Standby Current | 5 μA |
| Max Read Current | 1 mA |
| Clock Frequency | 100 kHz and 400 kHz |
| Max Write Cycle Time | 1 ms |
| Data Retention | >200 Years |
| Endurance | >1 Million Erase/Write Cycles |
All Microchip 24C02C documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the voltage range for the 24C02C?
The device operates with a single supply from 4.5V to 5.5V.
How many devices can be connected on the same bus?
Up to eight 24C02C devices may be cascaded on the same bus.
What is the operating voltage range of the 24C02C?
The device operates from 4.5 V to 5.5 V.
How much memory does the 24C02C provide?
It provides 256 bytes of EEPROM memory (256 × 8 bits).
