Start here

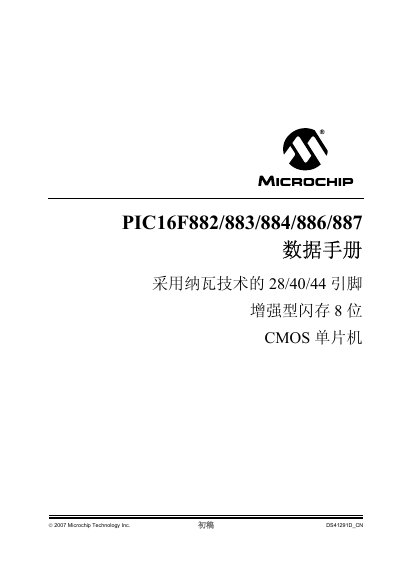

Microchip PIC16F882/883/884/886/887 Enhanced Flash 8-bit CMOS Microcontroller Datasheet
This document is the Chinese version of the datasheet for the Microchip PIC16F882/883/884/886/887 series of enhanced flash 8-bit CMOS microcontrollers. It details product features, pin configurations, and technical specifications for various pin counts (28, 40, and 44 pins) and package types.
The microcontrollers feature a high-performance RISC CPU requiring only 35 instructions, with a working speed of DC – 20 MHz. Key features include a high-precision internal oscillator, a wide operating voltage range of 2.0V to 5.5V, and various peripherals such as analog comparators, A/D converters with 10-bit resolution, and enhanced USART modules supporting RS-485, RS-232, and LIN 2.0. This manual is written in Chinese.
Microchip PIC16F882/883/884/886/887 specifications
| Operating Voltage | 2.0V - 5.5V |
|---|---|
| Operating Speed | DC – 20 MHz |
| Instruction Set | 35 instructions |
| Flash Memory Endurance | 100,000 erase/write cycles |
| EEPROM Endurance | 1,000,000 erase/write cycles |
| Data Retention | > 40 years |
| A/D Converter Resolution | 10-bit |
| Standby Current (Typical) | 50 nA @ 2.0V |
Source: Microchip PIC16F882/883/884/886/887 Enhanced Flash 8-bit CMOS Microcontroller Datasheet
All Microchip PIC16F882/883/884/886/887 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating voltage range for these microcontrollers?
The operating voltage range is 2.0V to 5.5V.
From: Microchip PIC16F882/883/884/886/887 Enhanced Flash 8-bit CMOS Microcontroller Datasheet
What is the maximum operating speed?
The maximum operating speed is DC to 20 MHz.
From: Microchip PIC16F882/883/884/886/887 Enhanced Flash 8-bit CMOS Microcontroller Datasheet
