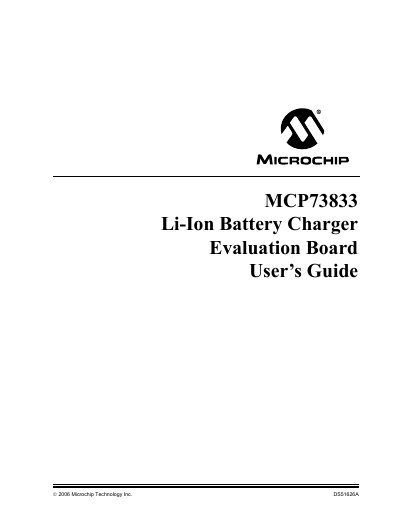

Microchip MCP73833 Li‑Ion Battery Charger Evaluation Board User Guide
This guide provides an overview of the MCP73833 Li‑Ion Battery Charger Evaluation Board, describing its purpose, key features and the integrated 1 A charger IC. It also lists recommended reading and customer support resources.
The manual details installation steps, operation instructions, schematic diagrams, layout drawings, and a complete bill of materials. Appendices include the board schematics, layout files, and worldwide sales and service contacts.
MICROCHIP MCP73833 specifications
| Maximum programmable charge current | 1 A |
|---|---|
| Supply voltage (Vop) | 3.75 V |
| Maximum junction temperature | Internally limited |
| Storage temperature range | -65 °C to +150 °C |
| Specified temperature range | -40 °C to +85 °C |
| Operating temperature range | -40 °C to +125 °C |
| Package type (DFN) | 3 mm × 3 mm DFN‑10 |
Source: Microchip MCP73833/4 Linear Li‑Ion/Li‑Polymer Charge Management Controller Datasheet
All MICROCHIP MCP73833 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum programmable charge current?
The controller can be programmed for a maximum charge current of 1 A.
From: Microchip MCP73833/4 Linear Li‑Ion/Li‑Polymer Charge Management Controller Datasheet
What constant‑voltage options are available?
Four preset voltage options are provided: 4.20 V, 4.35 V, 4.40 V, or 4.50 V.
From: Microchip MCP73833/4 Linear Li‑Ion/Li‑Polymer Charge Management Controller Datasheet
Where can I find the bill of materials for the board?
The complete bill of materials is listed in Appendix B, Table B‑1 of this guide.
From: Microchip MCP73833 Li‑Ion Battery Charger Evaluation Board User Guide
How can I obtain the latest version of this documentation?
Visit the Microchip website (www.microchip.com) for the most up‑to‑date documents and software releases.
From: Microchip MCP73833 Li‑Ion Battery Charger Evaluation Board User Guide
