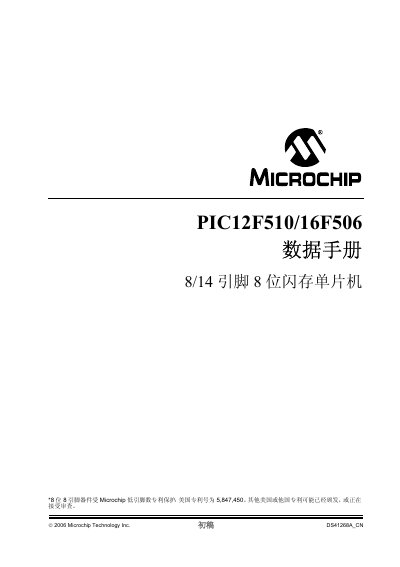

Microchip PIC12F510/16F506 8-bit Flash Microcontroller Datasheet
This document is a datasheet for the Microchip PIC12F510 and PIC16F506 8-bit flash microcontrollers. It covers the architecture, memory organization, I/O ports, timers, comparators, analog-to-digital converters, and special features such as code protection and low-power modes. The document also includes instruction set summaries, development support information, and electrical specifications. This manual is written in Chinese.
Read onlineMicrochip PIC12F510/16F506 specifications
| Operating Voltage | 2.0 V – 5.5 V |
|---|---|
| Operating Temperature | -40 °C – +125 °C |
| Program Memory | 1024 words |
| Data EEPROM | 38 bytes |
| RAM | 6 bytes |
All Microchip PIC12F510/16F506 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum operating frequency for the PIC12F510?
The PIC12F510 operates with a crystal oscillator frequency up to 8 MHz.
From: Microchip PIC12F510/16F506 8-bit Flash Microcontroller Datasheet
What is the maximum operating frequency for the PIC16F506?
The PIC16F506 operates with a crystal oscillator frequency up to 20 MHz.
From: Microchip PIC12F510/16F506 8-bit Flash Microcontroller Datasheet
What is the operating voltage range of the PIC12F510/16F506?
The devices operate from 2.0 V to 5.5 V.
What is the size of the program memory for these microcontrollers?
Each device has 1024 words of flash program memory.
What is the operating voltage range of the PIC12F510/16F506?
The devices operate from 2.0 V to 5.5 V.
What is the standby current of these microcontrollers?
Standby current is 100 nA at 2 V typical.
