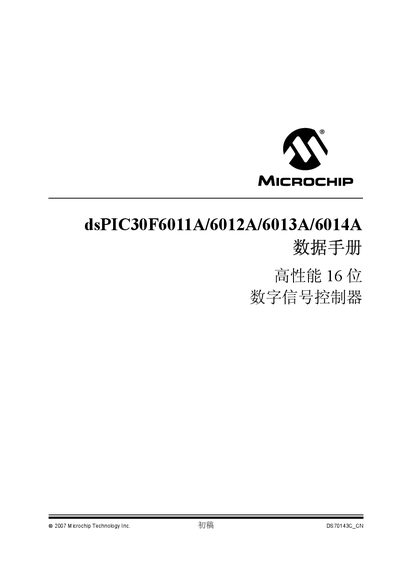

Microchip dsPIC30F6011A/6012A/6013A/6014A Datasheet
The dsPIC30F6011A/6012A/6013A/6014A series are high‑performance 16‑bit digital signal controllers featuring an enhanced Harvard architecture, up to 30 MIPS CPU speed, and a wide range of integrated peripherals. The devices include up to 144 KB of flash program memory, 8 KB of data RAM, and 4 KB of non‑volatile EEPROM, supporting demanding embedded applications.
The datasheet provides detailed information on the CPU core, memory organization, interrupt system, timers, communication interfaces (UART, SPI, I²C, CAN), ADC, and electrical characteristics. It also includes package options, pin‑out diagrams, and development support resources for engineers designing with these microcontrollers. This manual is written in Chinese.
MICROCHIP dsPIC30F6011 specifications
| CPU speed | up to 30 MIPS |
|---|---|
| Flash program memory | up to 144 KB |
| Data RAM | up to 8 KB |
| Data bus width | 16 bit |
| Interrupt sources | up to 41 |
| Timers | 5 × 16‑bit timers (pairable to 32‑bit) |
| UART modules | 2 |
| CAN modules | 2 (CAN 2.0B compatible) |
| Operating voltage | 2.5 V – 5.5 V |
| Temperature range | Industrial: –40 °C to +85 °C |
