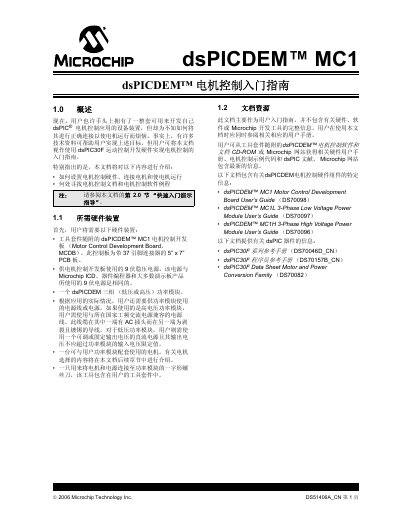

Microchip dsPICDEM MC1 Motor Control Development Board User Guide
This document serves as an introduction to using the dsPICDEM™ MC1 Motor Control Development Board (MCDB) to develop motor control applications. It covers the necessary hardware components, including the MCDB, power modules, and motors, and explains how to connect them to operate the system. The guide details the setup process for both high-voltage and low-voltage power modules. This manual is written in Chinese.
Read onlineMicrochip MC1 specifications
| Maximum operating speed | 16 MIPS (3.0V‑3.6V) |
|---|---|
| Operating temperature range | -40°C to +85°C (industrial) |
| Flash program memory | 16 KB |
| Data SRAM | 1 KB |
| Programmable digital I/O pins | Up to 21 pins |
| Package options | 20‑pin PDIP/SOIC/SSOP, 28‑pin SPDIP/SOIC/SSOP/QFN, 36‑pin TLA |
All Microchip MC1 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the physical size of the dsPICDEM MC1 motor control development board?
The control board is a 5-inch by 7-inch PCB with a 37-pin connector.
From: Microchip dsPICDEM MC1 Motor Control Development Board User Guide
What voltage range is required for a three-phase AC induction motor used with the high voltage power module?
The motor must have a rated operating voltage of 110-230 VAC.
From: Microchip dsPICDEM MC1 Motor Control Development Board User Guide
What is the PWM frequency at 16 MIPS for 16‑bit resolution?
At 16 MIPS, edge‑aligned mode runs at 488 Hz and center‑aligned mode at 244 Hz for 16‑bit resolution.
How many timers are available and can they be combined?
The device provides up to three 16‑bit timers, and two of them can be paired to form a 32‑bit timer.
