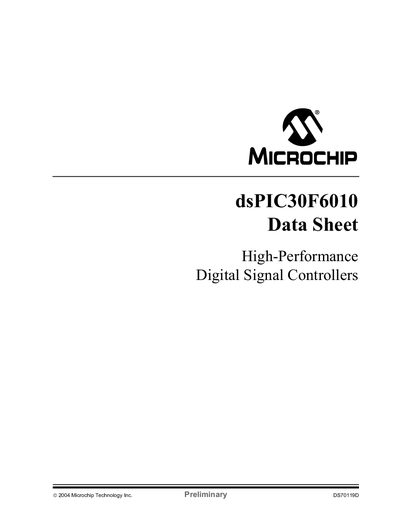

Microchip dsPIC30F6010 Datasheet
The dsPIC30F6010 is a 16‑bit digital signal controller from Microchip that combines a modified Harvard‑architecture CPU with extensive DSP capabilities. It offers up to 30 MIPS performance, a 144 KB Flash program memory, 8 KB RAM, and a range of peripheral modules for motor control, communication, and analog conversion.
The datasheet details the device’s architecture, memory organization, interrupt system, and peripheral features such as UART, CAN, SPI, I²C, PWM, and a 10‑bit ADC capable of 500 Ksps conversion. It also provides electrical characteristics, packaging information, and ordering details.
MICROCHIP dsPIC30F6010 specifications
| Flash program memory | 144 KB |
|---|---|
| Data RAM | 8 KB |
| Data EEPROM | 4 KB |
| Maximum performance | 30 MIPS |
| External clock input range | DC to 40 MHz |
| Interrupt sources | 44 total (5 external) |
| UART modules | 2 with FIFO buffers |
| CAN modules | 2 (2.0B compliant) |
| ADC resolution | 10‑bit |
| ADC conversion rate | 500 Ksps |
| I/O pin drive capability | 25 mA sink / 25 mA source |
Source: Microchip dsPIC30F6010 Datasheet
All MICROCHIP dsPIC30F6010 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the flash program memory size of the dsPIC30F6010?
The device provides 144 KB of on‑chip Flash program memory.
How many UART modules does the dsPIC30F6010 include?
It includes two UART modules, each with FIFO buffers.
What is the maximum CPU speed of the dsPIC30F6010A/6015?
The device can operate up to 30 MIPS.
How much flash memory does the dsPIC30F6010A/6015 provide?
It includes 144 KB of on‑chip flash program memory.
