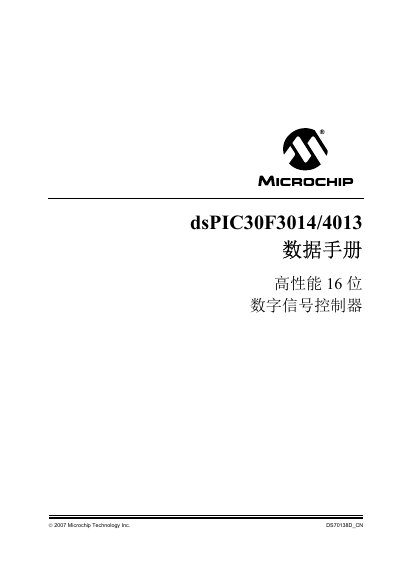

Microchip dsPIC30F3014/4013 Datasheet
The dsPIC30F3014/4013 is a 16‑bit digital signal controller featuring a RISC CPU core capable of up to 30 MIPS, 48 KB of program flash, 2 KB of RAM, and 1 KB of EEPROM. It operates from 2.5 V to 5.5 V and includes a range of peripherals such as UART, SPI, I²C, CAN, PWM, and a 12‑bit ADC.
The document details the device’s pin‑out, memory organization, power‑up/reset behavior, oscillator options, timer modules, watchdog timer, and programming model. It also lists electrical characteristics, package options (PDIP, TQFP, QFN), and regulatory compliance information. This manual is written in Chinese.
MICROCHIP dsPIC30F3014 specifications
| CPU core | RISC |
|---|---|
| Maximum performance | 30 MIPS |
| EEPROM | 1 KB |
| Operating voltage | 2.5 V–5.5 V |
| I/O pin current | 25 mA per pin |
All MICROCHIP dsPIC30F3014 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum operating speed of the dsPIC30F3014/4013?
The device can operate up to 30 MIPS.
What voltage range does the dsPIC30F3014/4013 support?
The controller operates from 2.5 V to 5.5 V.
What code‑protection features are provided?
The device includes programmable code protection, though Microchip does not guarantee it is unbreakable.
What is the operating temperature range?
Industrial range is –40 °C to +85 °C, with an extended range up to +125 °C.
