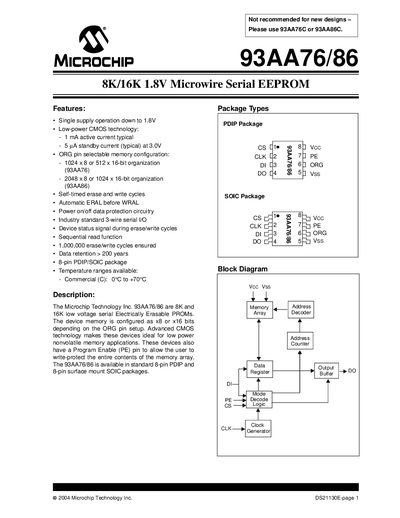

Microchip 93AA76/86 1.8V Microwire Serial EEPROM Datasheet
This document is a technical datasheet for the Microchip Technology Inc. 93AA76/86 series of Electrically Erasable PROMs (EEPROM). These devices are designed as low-power CMOS technology solutions for nonvolatile memory applications, offering single supply operation down to 1.8V.
The memory organization is configurable via an ORG pin: the 93AA76 provides either 1024 x 8 or 512 x 16-bit configurations, while the 93AA86 offers 2048 x 8 or 1024 x 16-bit options. Key features include self-timed erase and write cycles, automatic ERASE before WRAL, power on/off data protection circuitry, and a Program Enable (PE) pin for write-protection.
MICROCHIP 93AA76 specifications
| Memory Organization (93AA76) | 1024 x 8 or 512 x 16-bit |
|---|---|
| Memory Organization (93AA86) | 2048 x 8 or 1024 x 16-bit |
| Operating Voltage Range | +1.8V to +6.0V |
| Endurance | > 1,000,000 cycles |
| Data Retention | > 200 years |
| Package Types | 8-pin PDIP/SOIC |
Source: Microchip 93AA76/86 1.8V Microwire Serial EEPROM Datasheet
All MICROCHIP 93AA76 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the minimum operating voltage?
The device supports single supply operation down to 1.8V.
From: Microchip 93AA76/86 1.8V Microwire Serial EEPROM Datasheet
What happens during power-down?
Data protection circuitry inhibits all programming modes when Vcc falls below 1.4V.
From: Microchip 93AA76/86 1.8V Microwire Serial EEPROM Datasheet
What is the operating voltage range for the 93AA76 devices?
The 93AA76 devices operate from 1.8 V to 5.5 V.
From: MICROCHIP 8K Microwire Compatible Serial EEPROM 93AA76A/B/C 93LC76A/B/C 93C76A/B/C Manual
How many write/erase cycles can the EEPROM endure?
The devices are rated for up to 1,000,000 write/erase cycles.
From: MICROCHIP 8K Microwire Compatible Serial EEPROM 93AA76A/B/C 93LC76A/B/C 93C76A/B/C Manual
