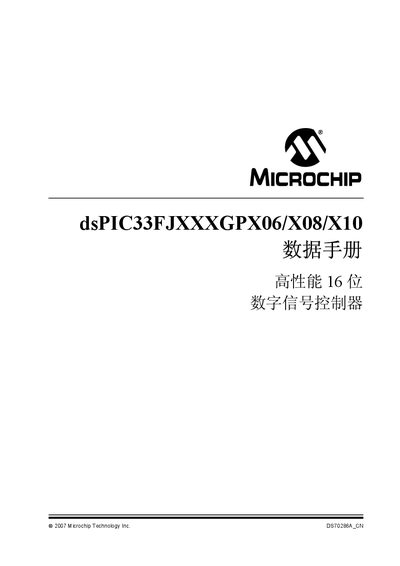

Microchip dsPIC33FJXXXGPX06/X08/X10 Digital Signal Controller Handbook
The handbook describes the dsPIC33FJXXXGPX06/X08/X10 family of 16‑bit digital signal controllers, covering core architecture, performance, and operating ranges. It includes information on memory sizes, peripheral modules, and device‑level features.
Key sections include detailed specifications, pin‑out diagrams for 64‑, 80‑ and 100‑pin TQFP packages, descriptions of communication interfaces (UART, CAN, I2C), ADC modules, DMA controller, and power‑management features. This manual is written in Chinese.
Microchip dsPIC33F specifications
| Maximum MIPS | 40 MIPS @ 3.0‑3.6 V |
|---|---|
| Operating Temperature | -40 °C to +85 °C (industrial‑grade) |
| Flash Program Memory | Up to 256 KB |
| Data SRAM | Up to 30 KB (including 2 KB DMA RAM) |
| Digital I/O Pins | Up to 85 programmable pins |
| Timers | Up to 9 × 16‑bit timers (pairable as 4 × 32‑bit) |
| ADC Modules | Up to 2 × 10‑bit or 12‑bit A/D converters |
Source: Microchip dsPIC33F 16‑bit Digital Signal Controller Datasheet
