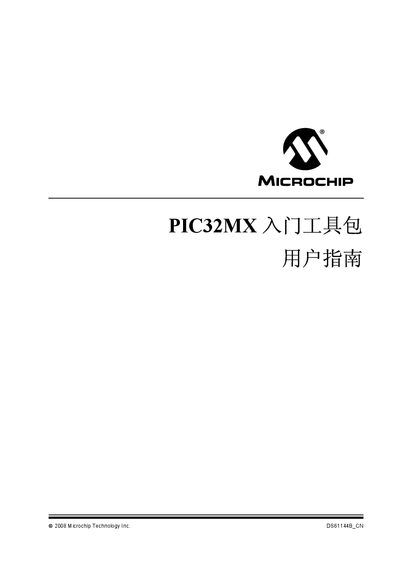

Microchip PIC32MX Introduction Tool Kit User Manual
The PIC32MX Introduction Tool Kit is a low‑cost, modular development system for Microchip's 32‑bit PIC32MX microcontrollers. It includes a demo board, USB connection, and expansion interfaces, allowing users to evaluate and develop firmware for the PIC32MX series.
The manual is organized into chapters covering an introduction to the kit, installation steps, tutorial projects, creating new MPLAB projects, detailed hardware descriptions, and an appendix with full schematics. It also lists recommended Microchip documentation and support resources. This manual is written in Chinese.
Microchip PIC32MX specifications
| Microcontroller | PIC32MX360F512L 32‑bit MCU |
|---|---|
| Power indicator LED | Green LED |
| Regulated supply | +3.3 V via USB or expansion board |
| Clock source | 8 MHz crystal oscillator |
| USB interface | USB connection for on‑board debugger |
| Debugger MCU | PIC18LF4550 USB microcontroller |
| Debug LED | Orange LED |
| User buttons | Three push‑button switches |
| User LEDs | Three user‑definable LEDs |
| Expansion connector | Connector for expansion boards on the back of the board |
All Microchip PIC32MX documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What microcontroller is used on the PIC32MX Introduction Tool Kit?
The kit uses the PIC32MX360F512L 32‑bit microcontroller.
How is the kit powered?
It is powered by a regulated +3.3 V supply provided via the USB connection or an external expansion board.
What is the maximum CPU clock speed of the PIC32MX5XX/6XX/7XX devices?
The devices can run up to 80 MHz.
What voltage range can the PIC32MX5XX/6XX/7XX operate in?
They operate from 2.3 V to 3.6 V.
