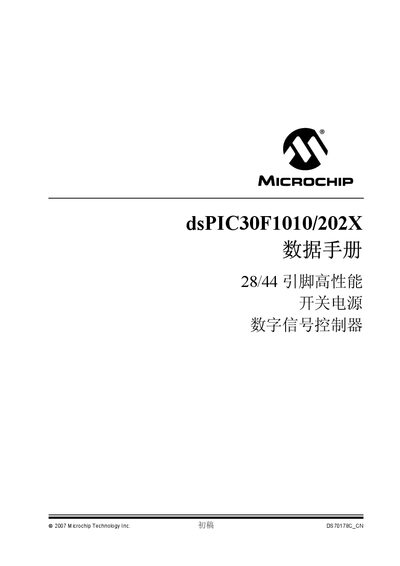

Microchip dsPIC30F1010/202X Datasheet
The dsPIC30F1010/202X series are high‑performance switching‑power digital signal controllers featuring an enhanced RISC CPU with up to 30 MIPS speed, 12 KB on‑chip flash, and a 16‑bit data bus. The device includes a rich set of peripherals such as multiple timers, PWM generators, SPI, I²C, UART, a 10‑bit ADC, and analog comparators.
The document details the CPU architecture, memory organization, address generator unit, interrupt system, I/O ports, and system integration features. It also provides electrical characteristics, package information, and development support resources for designers. This manual is written in Chinese.
Microchip dsPIC30F1010/202X specifications
| On‑chip Flash | 12 KB |
|---|---|
| On‑chip Data RAM | 512 bytes |
| Maximum CPU Speed | 30 MIPS |
| ADC Resolution | 10 bits |
| ADC Conversion Rate | 2000 Ksps |
| Analog Comparators | 4 (20 ns response time) |
| SPI Interface | 3‑line SPI (4 frame modes) |
| UART Features | RS‑232, RS‑485, LIN 1.2 support |
| PWM Generators | 4 generators, each 8 outputs |
