Key facts
- Brand
- MICROCHIP
- Model
- MPLAB ICD 2
- Category
- Other Electronics
- Documents
- 3
- Languages
- EN · ZH
- Last added
- 2012-05-04
Start here

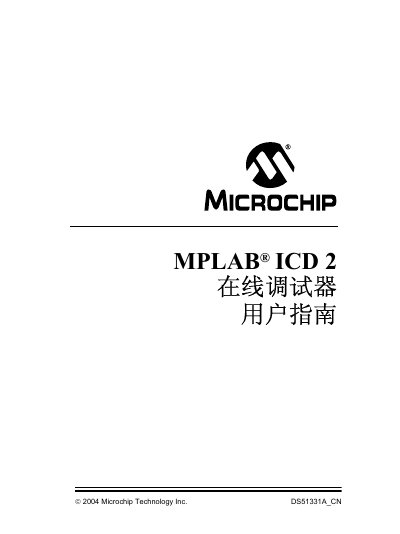

Microchip MPLAB ICD2 User Manual
This manual introduces the MPLAB ICD2 on‑line debugger, describing its operation, system components, and how it integrates with the MPLAB IDE. It includes detailed installation steps for various Windows versions, power‑supply requirements, and configuration of the development environment.
Additional sections cover troubleshooting, frequently asked questions, and worldwide sales and service contacts, helping users obtain technical support and locate local distributors. This manual is written in Chinese.
MICROCHIP MPLAB ICD 2 specifications
| Interface to PC | RS‑232 |
|---|---|
| Low‑voltage debug support | down to 2.0 V |
| Built‑in protection | over‑voltage/short‑circuit monitor |
| Firmware upgrade method | PC/web download |
Source: Microchip MPLAB ICD 2 In-Circuit Debugger User Manual
All MICROCHIP MPLAB ICD 2 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What interface does the MPLAB ICD 2 use to connect to the PC?
It connects via an RS‑232 interface.
Which operating systems are supported by the MPLAB ICD 2?
Windows 98, Windows NT 4.0, and Windows 2000 are supported.
How do I install the MPLAB ICD2 on Windows XP?
Refer to the "USB Installation Details" section, which provides step‑by‑step instructions for installing the debugger under Windows XP.
Where can I get technical support for the MPLAB ICD2?
Technical support is available via the Microchip support website (support.microchip.com) and by calling the regional support phone numbers listed in the Global Sales and Service section.
