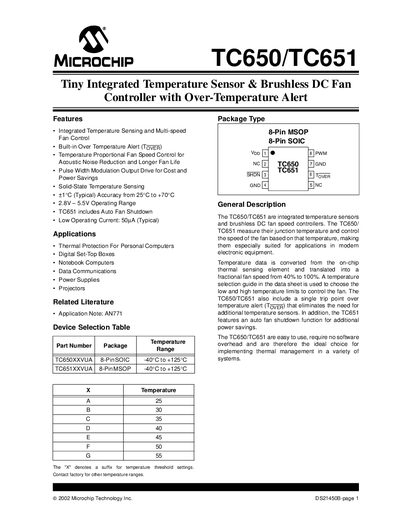

Microchip TC650/TC651 Tiny Integrated Temperature Sensor & Brushless DC Fan Controller Datasheet
The TC650/TC651 are integrated temperature sensors and brushless DC fan speed controllers designed for thermal protection in electronic equipment such as personal computers, set-top boxes, and projectors. They measure junction temperature and control fan speed proportionally to reduce acoustic noise and extend fan life.
These devices feature solid-state sensing with a typical accuracy of +1°C from 25°C to +70°C. The TC650 offers multi-speed fan control ranging from 40% to 100%, while the TC651 includes an auto-fan shutdown function for power savings when temperatures are low. Both models include a built-in over-temperature alert (TOVER) that triggers at a set point plus 10°C.
MICROCHIP TC650 specifications
| Supply Voltage Range | 2.8V — 5.5V |
|---|---|
| Operating Temperature Range | -40°C to +125°C |
| Temperature Accuracy | +1°C (Typical) |
| Supply Current | 50uA (Typical) |
| PWM Frequency | 15 Hz |
Source: Microchip TC650/TC651 Tiny Integrated Temperature Sensor & Brushless DC Fan Controller Datasheet
