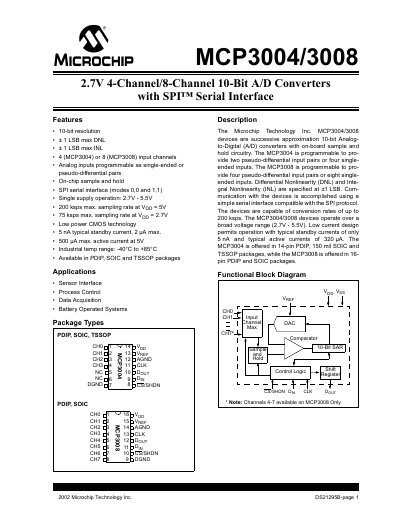

Microchip MCP3004/MCP3008 Datasheet
The MCP3004 and MCP3008 devices are successive‑approximation 10‑bit analog‑to‑digital converters with SPI serial interface. The MCP3004 provides four single‑ended inputs (or two pseudo‑differential pairs) while the MCP3008 offers eight single‑ended inputs (or four pseudo‑differential pairs). They are available in PDIP, SOIC and TSSOP packages and are intended for sensor interfacing, data acquisition, and battery‑operated systems.
Key electrical characteristics include a supply range of 2.7 V‑5.5 V, standby current as low as 5 nA, active current up to 500 µA at 5 V, and sampling rates up to 200 ksps (5 V) or 75 ksps (2.7 V). The devices operate over an industrial temperature range of –40 °C to +85 °C and meet the specified DNL/INL limits of ±1 LSB.
MICROCHIP MCP3008 specifications
| Resolution | 10 bits |
|---|---|
| Input Channels | 4 (MCP3004) or 8 (MCP3008) |
| Supply Voltage | 2.7 V – 5.5 V |
| Standby Current | 5 nA typical |
| Active Current | 500 µA max at 5 V |
| Maximum Sampling Rate | 200 ksps at 5 V, 75 ksps at 2.7 V |
| Differential Nonlinearity (DNL) | +1 LSB max |
| Integral Nonlinearity (INL) | +1 LSB max |
| Package Options | PDIP, SOIC, TSSOP |
| Operating Temperature Range | -40 °C to +85 °C |
All MICROCHIP MCP3008 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum sampling rate of the MCP3004/3008?
The devices can sample up to 200 ksps when powered at 5 V and up to 75 ksps at 2.7 V.
What is the standby current of the MCP3004/3008?
The typical standby current is 5 nA.
What is the operating voltage range for the MCP3004/3008?
The devices operate from 2.7 V to 5.5 V.
How many input channels does the MCP3008 provide?
The MCP3008 provides eight input channels.
