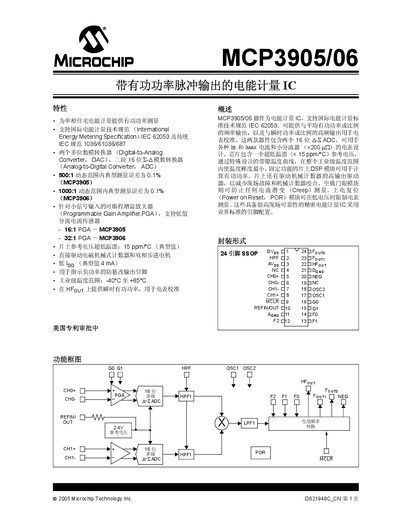

Microchip MCP3905/06 Energy Metering IC Datasheet
The MCP3905/06 is a dual‑channel energy‑metering IC from Microchip that provides active‑power measurement for single‑phase residential meters. It features two 16‑bit Σ‑Δ ADCs, programmable gain amplifiers, and both frequency and high‑frequency outputs for calibration.
The document includes electrical characteristics, pin descriptions, typical performance curves, and ordering information. It also outlines application notes such as reference‑voltage usage, high‑pass filter control, and negative‑power detection. This manual is written in Chinese.
Microchip MCP3905/06 specifications
| Supply voltage (VDD) | 4.5 V – 7.0 V |
|---|---|
| Analog/Digital supply (AVDD, DVDD) | 4.5 V – 5.5 V |
| ADC count | 2 × 16‑bit Σ‑Δ ADC |
| PGA gain options | -16:1 (MCP3905) / -32:1 (MCP3906) |
| Operating temperature range | -40 °C to +85 °C |
| IDD (typical) | 4 mA |
