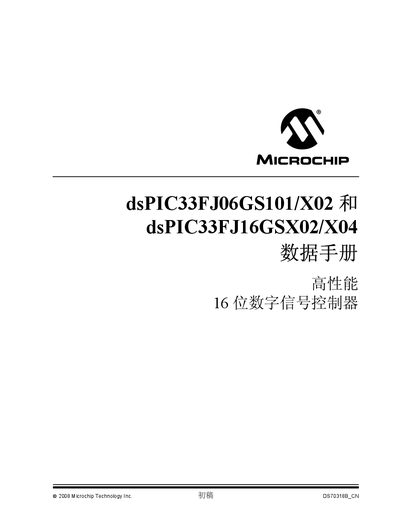

Microchip dsPIC33FJ06GS101/X02 and dsPIC33FJ16GSX02/X04 Controller Handbook

About this manual

This handbook provides detailed specifications, pin‑out diagrams, and peripheral features for the dsPIC33FJ06GS101/X02 and dsPIC33FJ16GSX02/X04 families. It includes performance data, memory sizes, package options, and system‑management features.

The document also lists global sales and service locations for Microchip, and gives guidance on ordering and product identification. This manual is written in Chinese.

What's inside

• High‑speed PWM module features
• High‑speed analog comparators
• ADC sampling and conversion
• Power management
• System management and clock options
• Package options and pinout diagrams
• Product identification system
• Global sales and service network

Specifications

Frequently asked questions

What is the maximum operating speed of the dsPIC33FJ controllers?

The controllers can operate up to 40 MIPS.

Which temperature ranges are supported by these devices?

They support an industrial range of –40 °C to +85 °C and an extended range of –40 °C to +125 °C.

How much flash program memory is available?

Each device provides up to 16 KB of flash program memory.

What are the package options for these dsPIC33FJ devices?

Available packages include 18‑pin SOIC, 28‑pin SPDIP/SOIC/QFN‑S, and 44‑pin TQFP/QFN.
