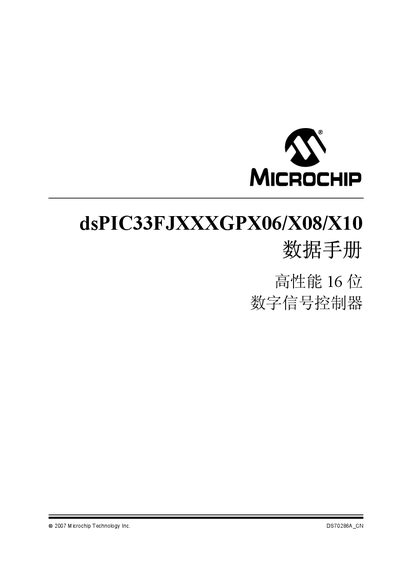

Microchip dsPIC33FJXXXGPX06/X08/X10 Digital Signal Controller Handbook

About this manual

This handbook describes the high‑performance 16‑bit dsPIC33FJXXXGPX series, covering its Harvard‑architecture CPU core, DMA engine, interrupt controller, digital I/O, flash and SRAM capacities, and system management features such as clock options and power‑saving modes. It also lists the supported peripherals including ADC, UART, CAN, and timer/PWM modules.

Detailed pin‑out diagrams for 64‑, 80‑ and 100‑pin TQFP packages are included, along with a family table that shows device variants, memory sizes, and available peripherals. Ordering information, product identification codes, and global sales contacts are provided at the end of the document. This manual is written in Chinese.

What's inside

• High‑Performance 16‑bit Digital Signal Controller
• CPU Core and Instruction Set
• DMA and Peripheral Support
• Interrupt Controller
• Digital I/O and Pin Count
• Memory (Flash, SRAM, DMA RAM)
• System Management and Clock Options
• Timers, Capture, Compare, PWM
• Communication Modules (ADC, UART, CAN)
• Pin Diagrams and Package Options

Specifications

Frequently asked questions

What is the maximum processing speed of the dsPIC33FJXXXGPX series?

The device can achieve up to 40 MIPS at 3.0‑3.6 V supply.

How many digital I/O pins are programmable?

Up to 85 digital I/O pins can be programmed.

What temperature range does the controller support?

It operates from –40 °C to +85 °C, suitable for industrial environments.

How much flash memory is available on the device?

The controller includes up to 256 KB of flash program memory.
